Simplecom CHT814 14-in-1 USB-C 4K Triple Display MST Docking Station with Dual HDMI DP

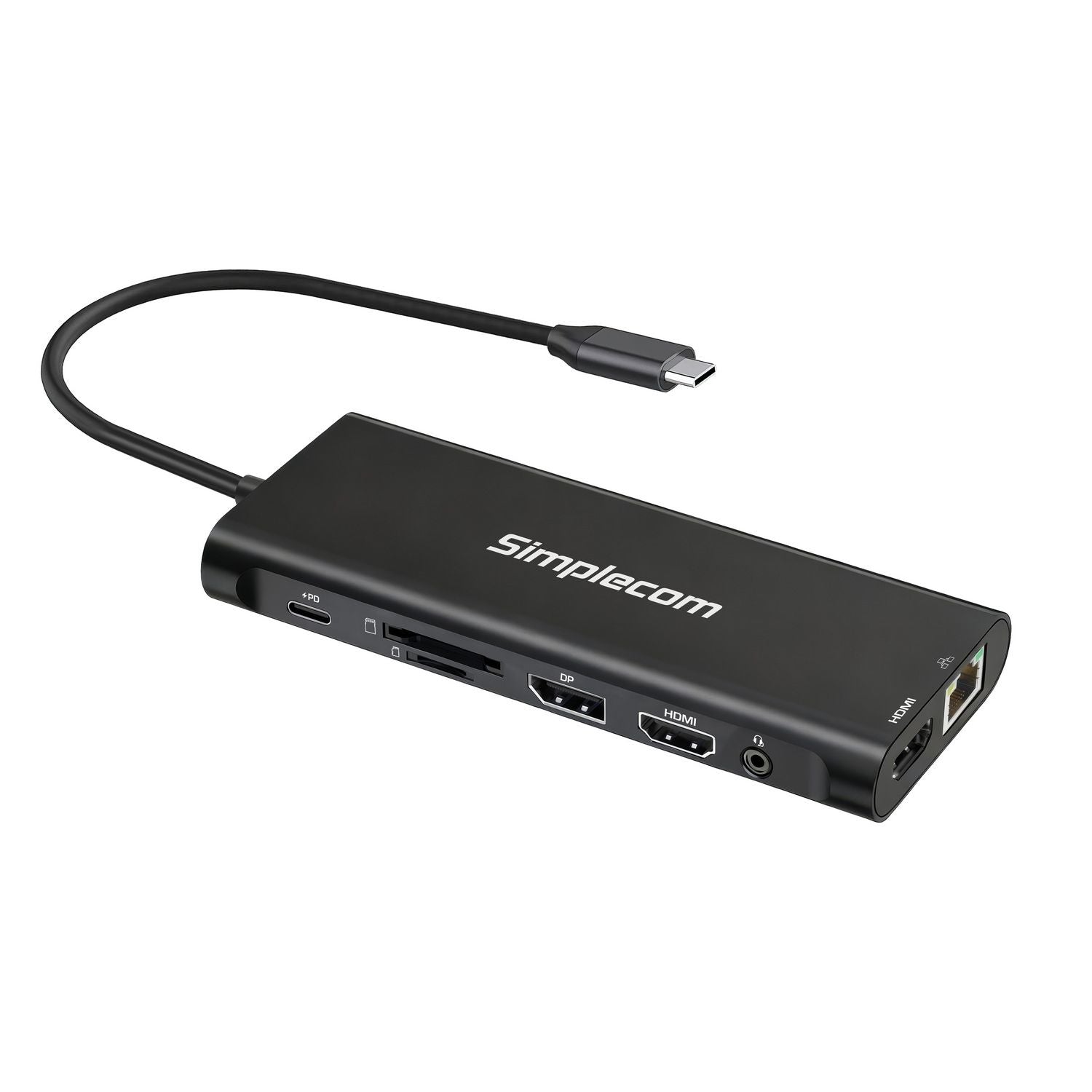

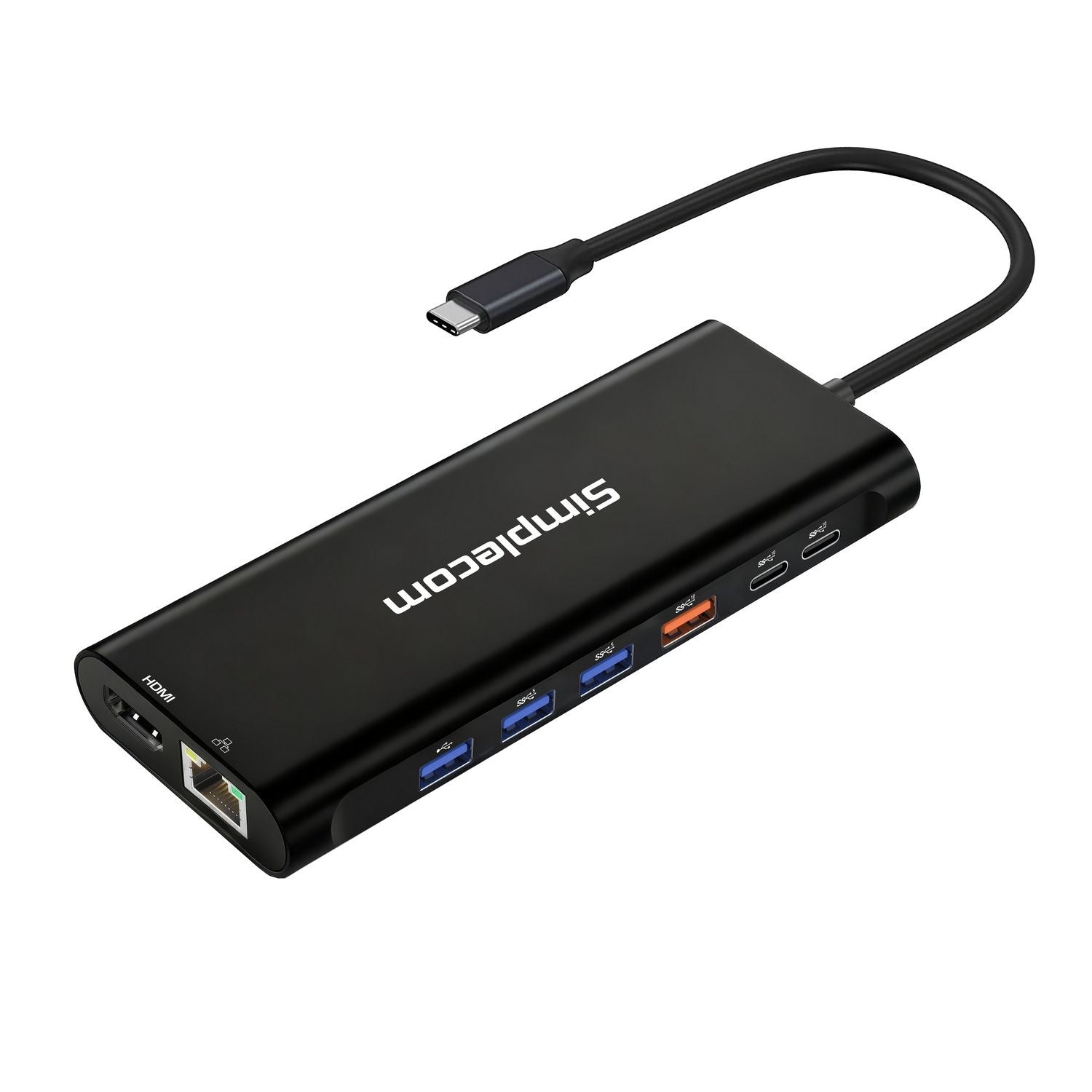

The CHT814 is a powerful and compact 14-in-1 USB-C docking station designed to expand your laptop's connectivity through a single USB-C connection. It features 4 USB-A ports, 2 USB-C data ports, dual card reader slots, Gigabit Ethernet, a 3.5mm headphone jack, and three display outputs (two HDMI and one DisplayPort), providing a complete all-in-one expansion solution for work or home office use.

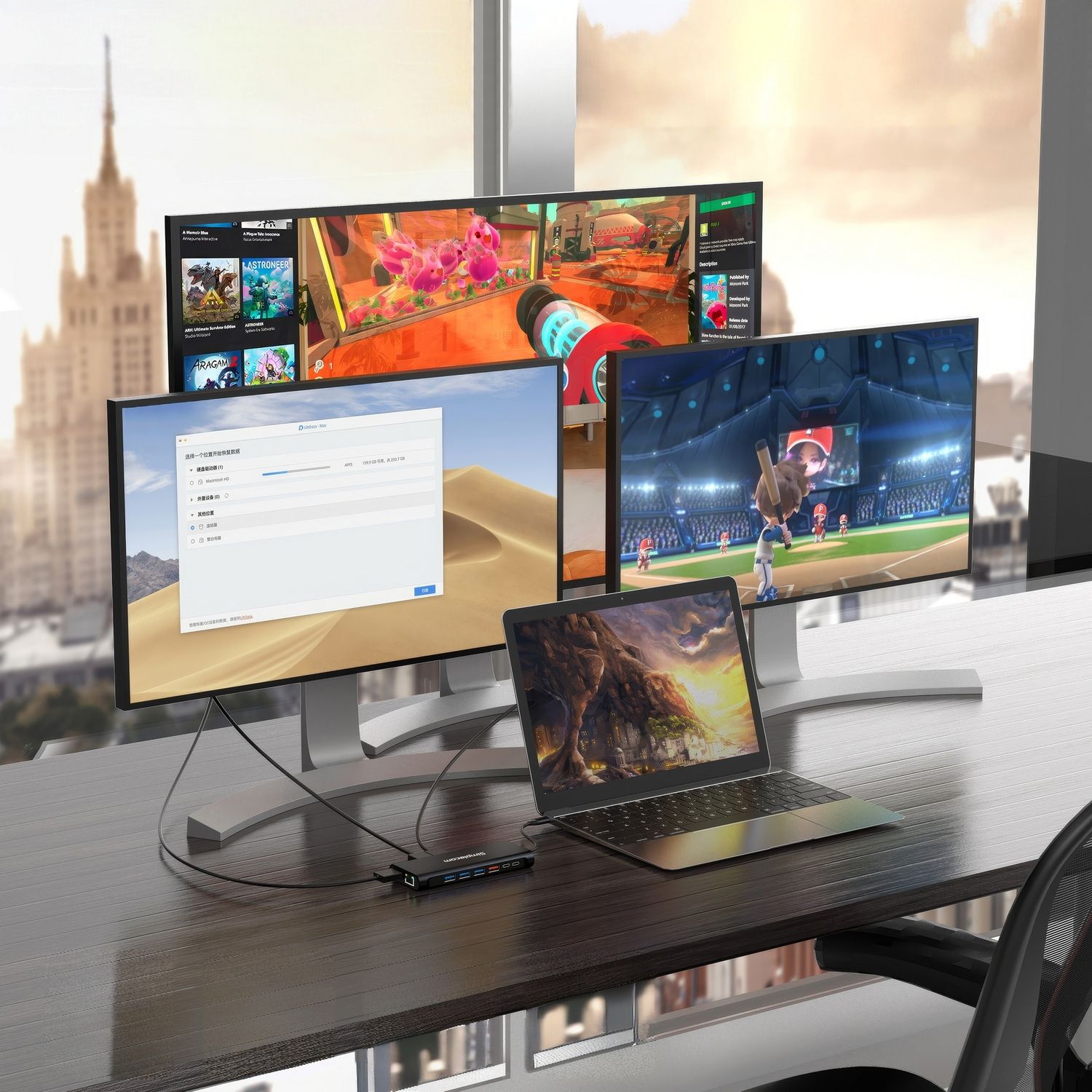

With support for up to three external displays at 4K resolution, the docking station allows you to extend your desktop across multiple monitors or run different tasks on separate screens. Don't be restricted to the small screen on laptop, this dock significantly boosts productivity by enabling a true multi-screen workspace.
A total of six USB-A and USB-C data ports lets you connect a wide range of USB peripherals, while the USB-C Power Delivery port supports up to 100W charging, allowing you to power your laptop and accessories at the same time.
Designed for convenience, the CHT814 is plug-and-play with no additional drivers required. It's an ideal solution for both home and office environments, offering enhanced productivity and flexibility.
14-in-1 USB-C Docking Station

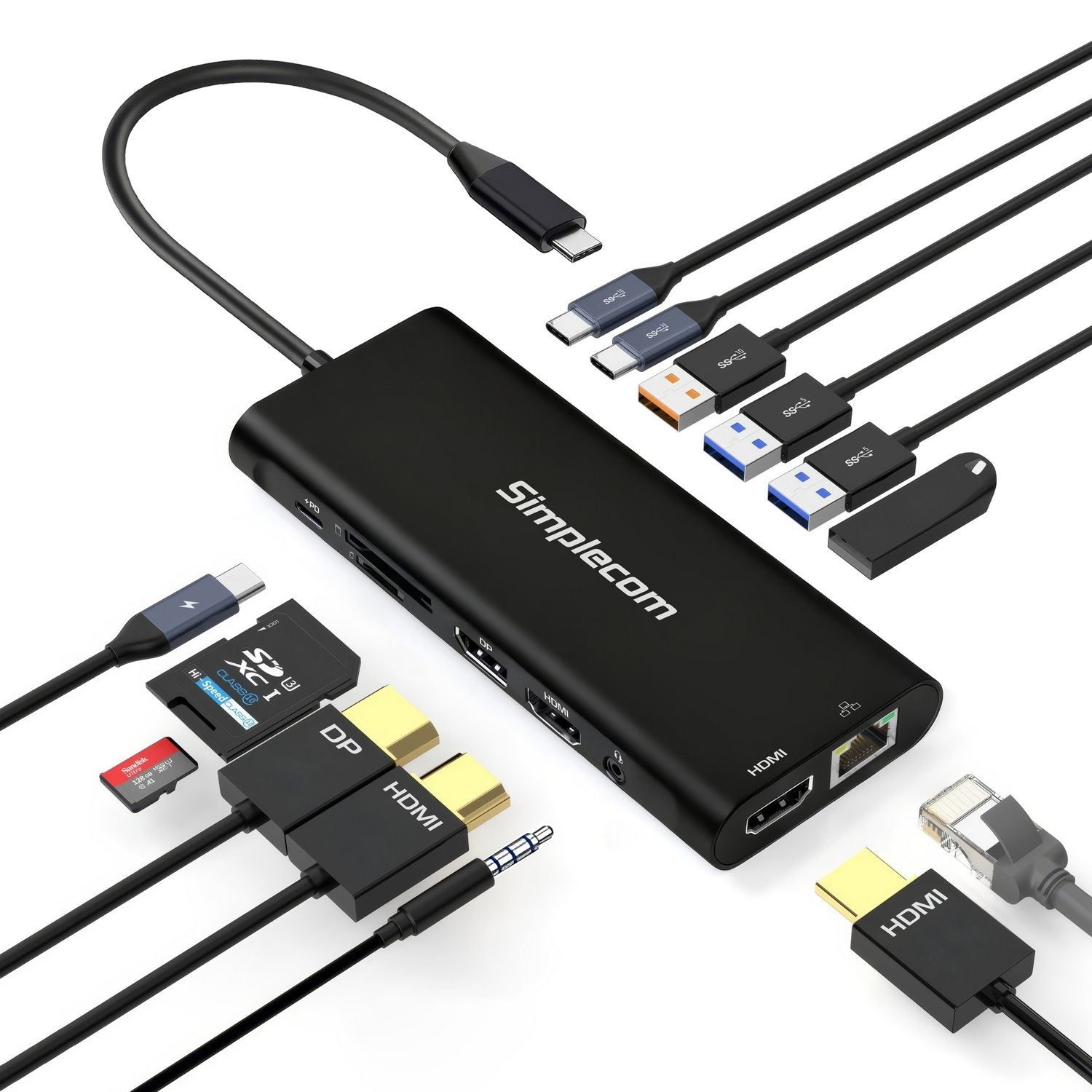

An all-in-one USB-C dock equipped with 4 USB-A ports, 2 USB-C data ports, a USB-C PD charging port, dual card readers, Gigabit Ethernet, a headphone jack, and three display outputs (2 HDMI + 1 DisplayPort).
MST Support with Triple 4K Extended Displays
Supports MST (Multi-Stream Transport) via USB-C with DP Alt Mode, enabling three external displays simultaneously through two HDMI ports and one DisplayPort.
Note: MST is supported on Windows only. macOS does not support MST.
High-Speed USB Expansion up to 10Gbps
Six USB-A and USB-C data ports allow connection of peripherals such as external drives, keyboards, mice, printers, and more. Three ports support up to 10Gbps data transfer, making them ideal for high-speed portable SSDs and large file transfers.
100W USB-C Power Delivery
The USB-C PD port supports PD 3.0 and delivers up to 100W power, allowing you to charge your laptop while using all other functions of the docking station.
Gigabit Ethernet
Provides stable wired network access with speeds up to 1000Mbps, reducing latency and interference for smoother streaming, downloads, and online work.
SuperSpeed Dual Card Reader TRRS Headphone Jack
The SD and microSD card reader supports data transfer rates up to 5Gbps and allows simultaneous access to both cards. The TRRS headphone jack supports headsets with microphones, ideal for video conferencing, calls, and audio recording.
Durable Aluminium Alloy Casing
Built with a premium aluminium alloy housing, the dock offers excellent heat dissipation, reliable performance, and a sleek, professional look that complements any workspace.
Features
- Boost your productivity with this 14-in-1 laptop docking station
- Triple display outputs allow up to three extended monitors for multitasking
- Supports MST (Multi-Stream Transport) for mirrored or extended display modes
- HDMI and DisplayPort outputs support resolutions up to 4K@60Hz
- Multiple USB-A and USB-C ports offer data transfer speeds up to 10Gbps
- Supports up to 100W Power Delivery charging via the USB-C PD port
- Gigabit Ethernet provides a stable wired connection up to 1000Mbps
- Dual card reader supports SD and microSD cards with transfer rates up to 5Gbps
- 3.5mm audio jack with microphone support for easy headset connection
- Premium aluminium casing ensures durability and efficient heat dissipation
- Compact and portable design, easy to carry with your laptop
- Plug and play, no drivers or software required
Specifications
- Model: CHT814
- Host Interface: USB-C

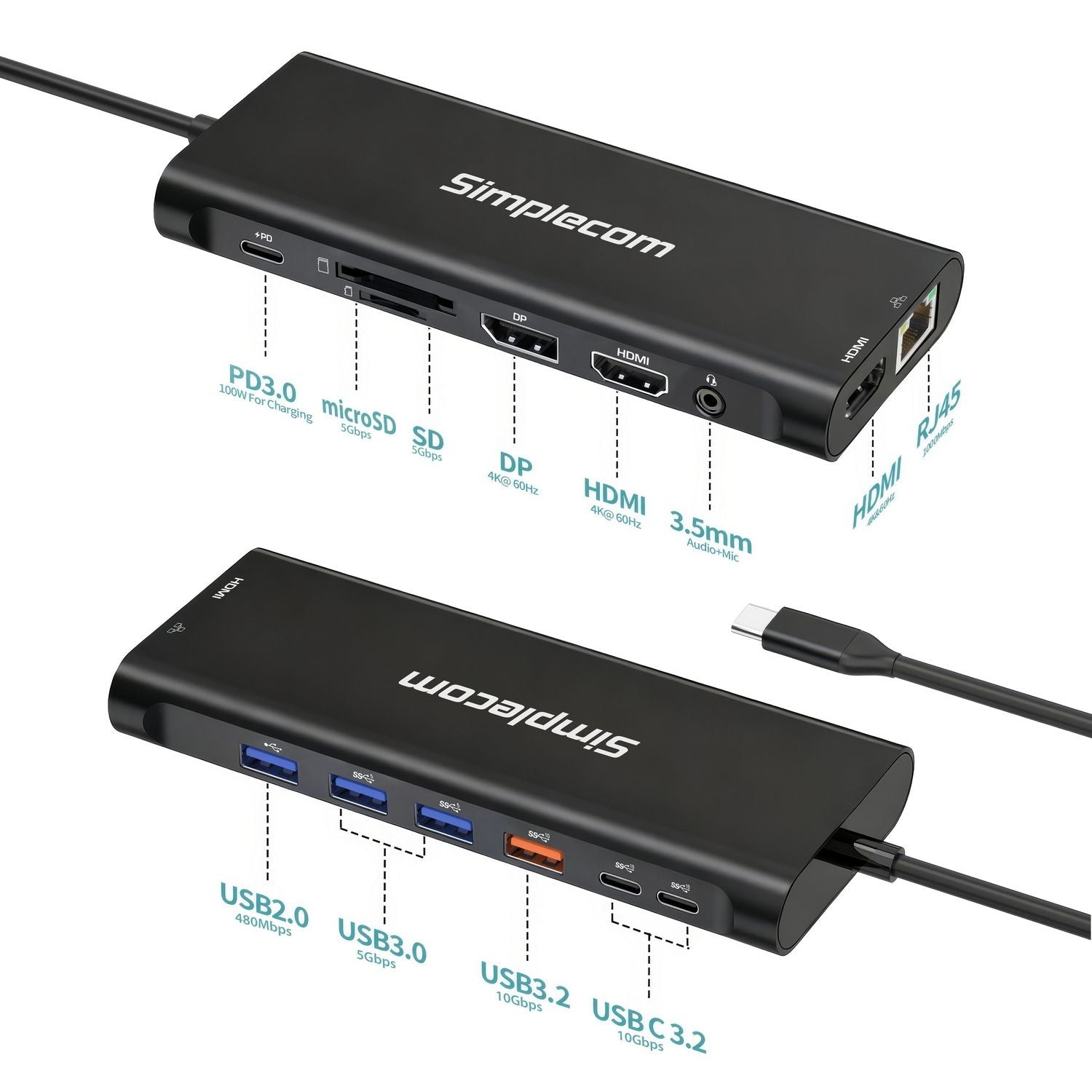

- USB-A Data Ports: 1x USB 480Mbps, 2x USB 5Gbps, 1x USB 10Gbps
- USB-C Data Ports: 2x USB 10Gbps
- Display Ports: 2x HDMI, 1x DP
- HDMI Resolution: up to 4K@60Hz (3840x2160)
- DP Resolution: up to 4K@60Hz (3840x2160)
- HDCP Support: HDCP 2.3 compliant, backwards compatible
- Network Port: RJ45 Gigabit Ethernet (10/100/1000 Mbps)
- Audio Port: 4-Pole TRRS 3.5mm Audio Jack (StereoMic Combo)
- Card Reader: SD and MicroSD (5Gbps, simultaneous access to two slots)
- PD Input: USB-C PD (charging only), up to 100W
- Housing Material: Aluminum
- Operation Temperature: 0 - 50??C
- Dimension: 14.3 x 5.5cm x 1.7cm
- Weight: 120g
System Requirements
- Operating system: Windows 10 or later, macOS 10.12 or later (no MST support)
- Available USB-C port with DP Alt Mode support (video output over USB-C), Thunderbolt USB-C port or USB4 port
- macOS does not support MST technology and will only support one extended mode output
- Laptop GPU with DP 1.4 or higher supports up to 3x extended displays
- For 3x extended screens at 4K resolution, DP 1.4 (or higher) and DSC (Display Stream Compression) are required for laptop GPU
Important Notes
- Please confirm that the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports support only charging or data transfer and do not offer video output functionality.
- 4K@60Hz is supported by laptop GPUs with DP 1.4 or higher version (e.g., Intel 12th Gen Core Mobile Processors or later).
- The USB-C PD port is for Power Delivery (PD) charging only and does not support data transfer.
- Laptop GPU with DP 1.2 supports 2x extended screens only, laptop GPU with DP1.4 or higher supports 3x extended screens.
Package Contents
- 1x 14-in-1 Docking Station
- 1x User Manual
