Simplecom CHT660 Adjustable Aluminium Laptop Stand with 6-Port USB-C Docking Station Dual 4K HDMI Display
CHT660 is an adjustable aluminium laptop stand with built-in 6 ports multifunctional USB-C docking station. It's not only a laptop stand, but also a docking station that allows you to elevate your laptop and enhance its functionality through the USB-C port. It turns a single USB-C port into 6 ports, including dual 4K HDMI outputs, two SuperSpeed USB-A data ports, Gigabit Ethernet, and 100W PD charging.
Durable and Foldable Aluminium Alloy Stand
The stand is made of high-quality aluminium alloy, which makes it easy to dissipate heat while the laptop is working. The soft rubber pads on the top protect your laptop from sliding and scratches. The foldable design makes it easy to store and carry, opening and folding up in seconds, which saves space when not in use. Compatible with laptops from 10 to 17 inches.
Adjustable Stand with Ergonomic Design

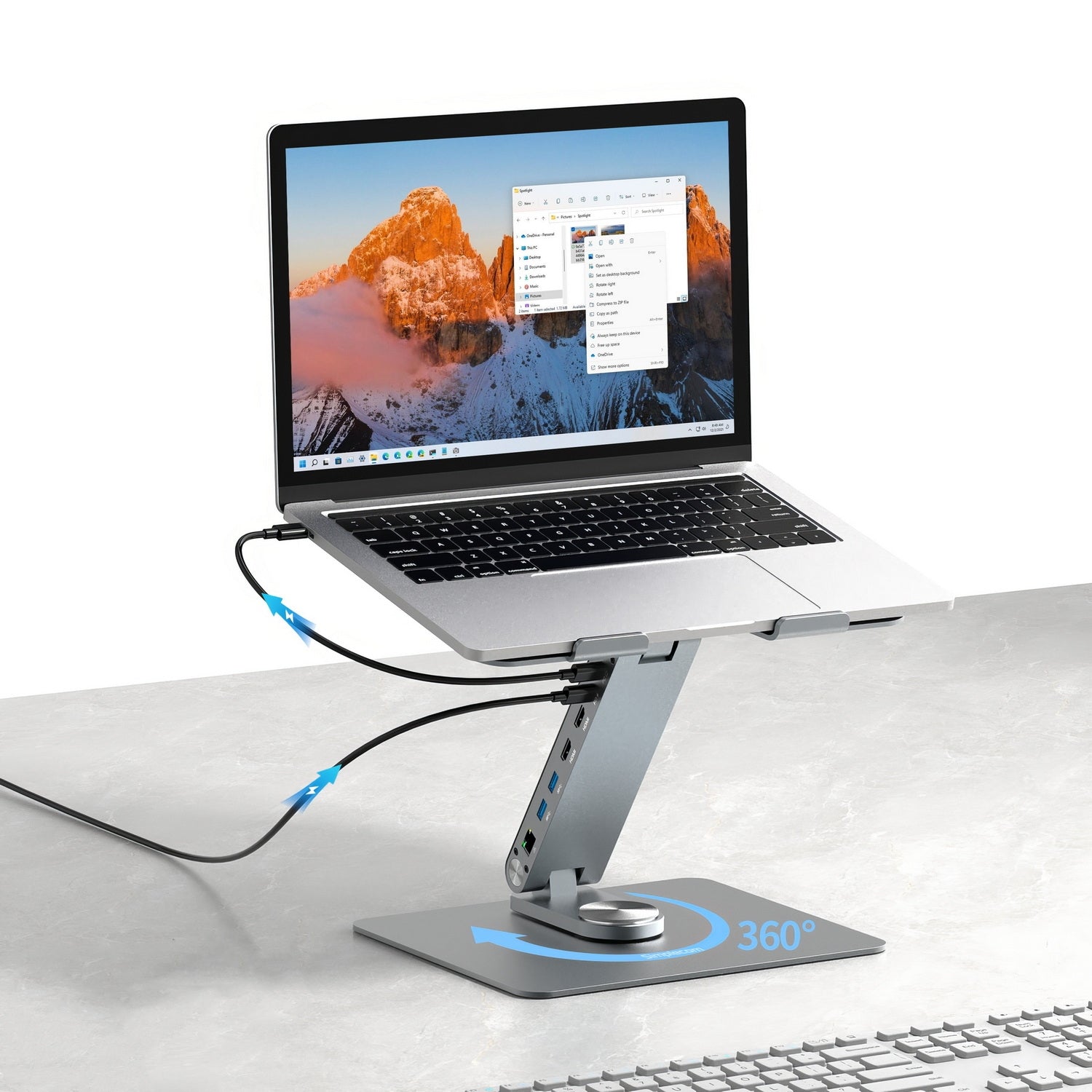

The laptop stand is designed with adjustable in height and angle, you can raise your laptop screen to a more ergonomic viewing height, which is better for maintaining a healthy posture. It also features 360 rotatable base, allowing you to easily swivel your laptop screen to any direction.

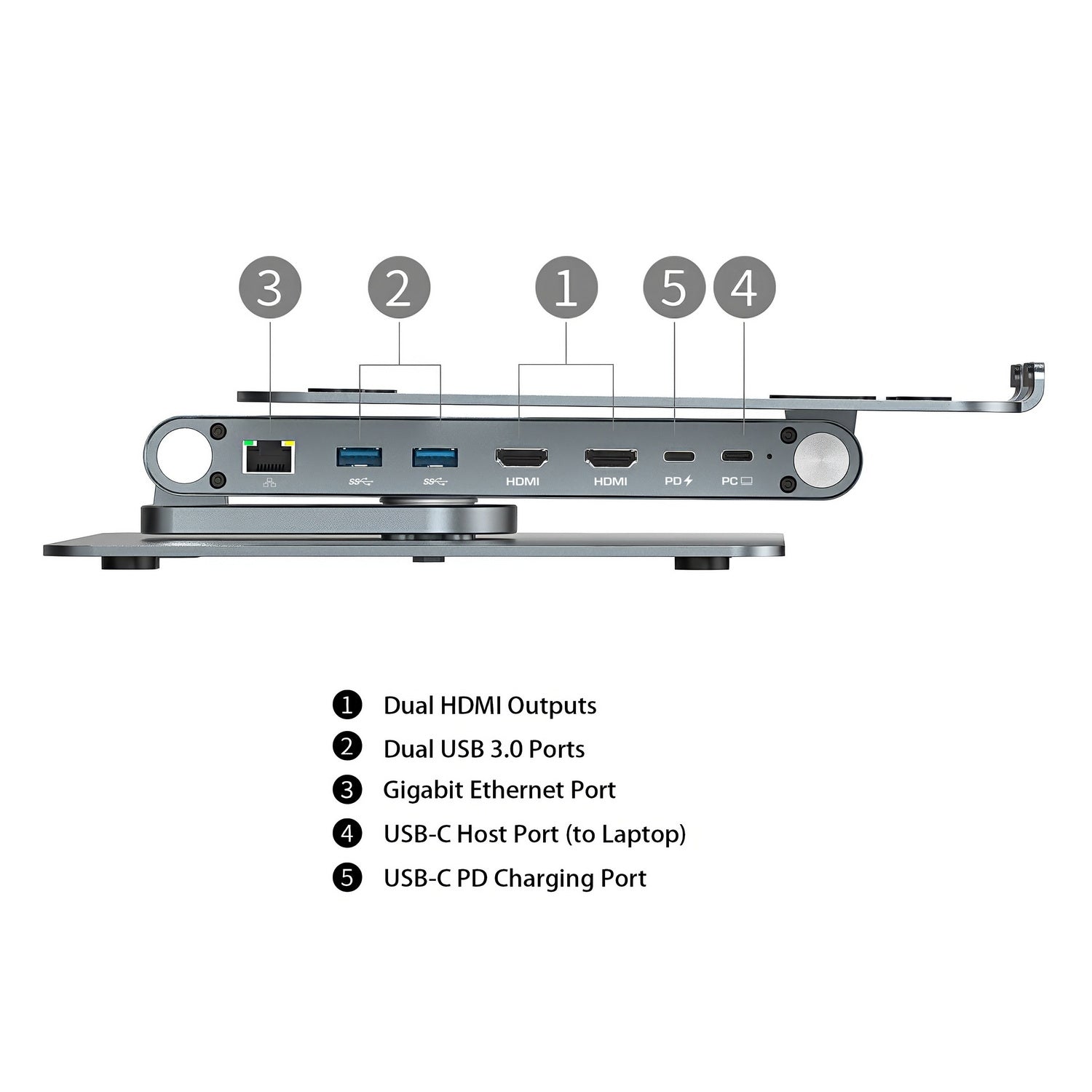

Built-in 6 Ports USB-C Docking Station
Built-in 6 ports multifunctional USB-C docking station for laptop, including dual 4K HDMI outputs, two SuperSpeed USB-A data ports, Gigabit Ethernet, and 100W PD charging.

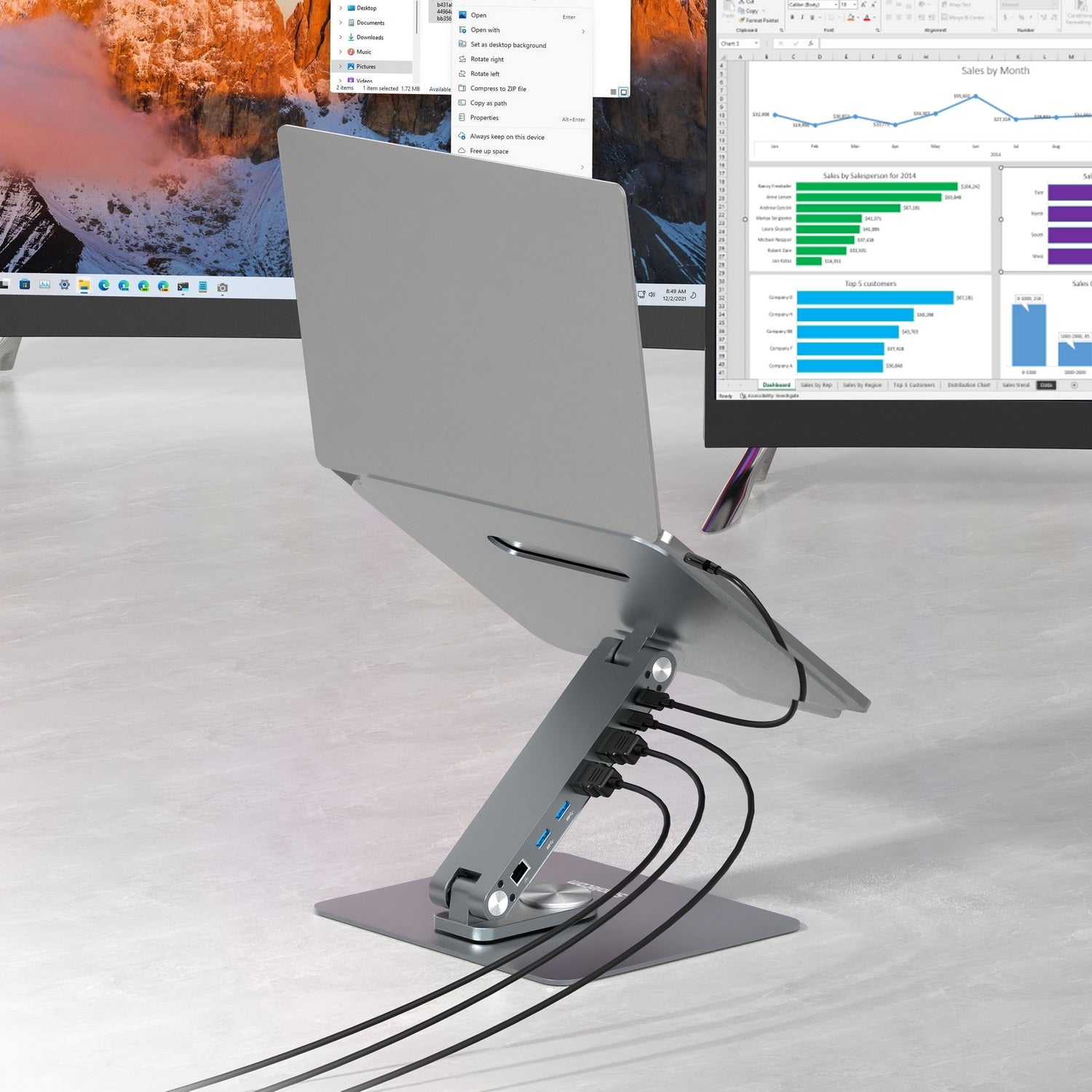

Dual HDMI Video Outputs with 4K Support
The USB-C docking station has dual HDMI outputs, which allows you to connect 2 extended screens simultaneously for Windows system. Connecting single HDMI supports up to 4K@60Hz and dual HDMI supports up to 4K@30Hz on each external monitor.
SuperSpeed 5Gbps USB Data Ports
Two USB-A data ports comply with USB 3.2 Gen 1 standard, supports maximum data transfer speed up to 5Gbps, which allows you to connect and utilize high speed USB SSD devices. With total 5 USB data ports, you can connect a variety of USB peripherals, such as, mouse, keyboard, printer, USB pen drive and more.
Gigabit Ethernet
Connect to the network instantly and enjoy stable connection speeds of up to 1000Mbps, Avoid the latency and interference issues for a more consistent, reliable experience when streaming or downloading.
100W USB-C Power Delivery
The USB-C PD Port can charge your connected laptop while other ports are working. The USB-C port supports up to 100W Power Delivery charging.
Features
- Adjustable aluminium laptop stand with built-in USB-C docking station
- Raises your laptop for optimal viewing angle to help you maintain good posture
- Built-in 6 ports multifunctional USB-C docking station for laptop
- Dual HDMI output ports, support mirror or extended mode
- Supports single HDMI up to 4K@60Hz and dual HDMI up to 4K@30Hz
- Two USB ports support up to 5Gbps transfer rate with USB 3.2 Gen1 standard
- Gigabit Ethernet support connection speeds of up to 1000Mbps
- USB-C PD port for charging the laptop with up to 100W of power
- 360 rotating base, allowing you to swivel laptop screen to any direction
- Foldable design, open and fold up in seconds, easy to carry and store
- Durable aluminium alloy stand, with soft rubber pads to protect laptop from scratches
Specifications
- USB Hub: 2x USB-A Female (5Gbps)
- Video Output: 2x HDMI 2.0 Female
- HDMI Resolution: Single HDMI output supports up to 4K@60Hz, dual HDMI outputs support up to 4K@30Hz on each external monitor
- MST Support: Yes (for Windows System only)
- RJ45 Port: Gigabit Ethernet (10/100/1000 Mbps)
- PD Charging: USB-C Female (for charging only), up to 100W
- Docking Operation Temperature: 0 - 45C
- Stand Compatibility: laptops from 10 to 17 inches
- Stand Weigh Capacity: 4KG
- Stand Material: Aluminium Alloy

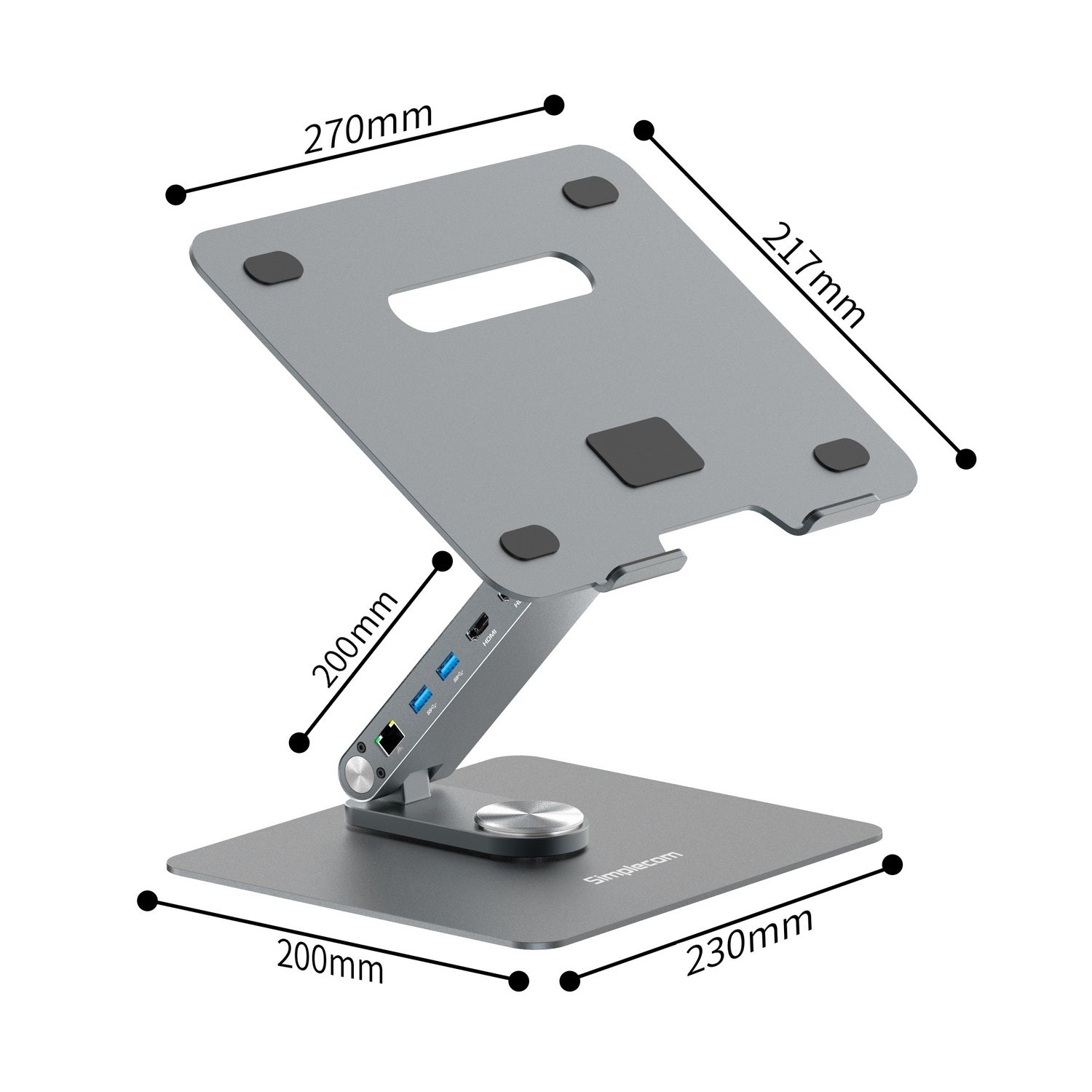

- Dimensions: 27 x 27 x 5.6cm (Folded)
- Weight: 1.4KG
Package Contents
- 1 x Laptop Stand with USB-C Dock
- 1 x USB-C to USB-C Cable
- 1 x User Manual
System Requirements
- Operating system: Windows 10 or above, macOS 10.12 or above
- Available USB-C port with DP Alt Mode support (video output over USB-C), Thunderbolt USB-C port or USB4 port
- Windows 10 or above for MST and two extended screens support
- macOS does not support MST and will only support one extended screen
- Laptop GPU with DP1.4 supports up to 4K@60Hz, laptop GPU with DP1.2 supports up to 4K@30Hz
- For 2x extended screens at 4K resolution, DP 1.4 and DSC (Display Stream Compression) are required for laptop GPU
Important Note
- Before purchasing, please confirm the USB-C port on your laptop supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function
- 4K@60Hz is supported by laptop GPU with DP1.4 (e.g. Intel 11th Gen Core Mobile Processors or later)
- The USB-C PD port is for PD charging only, not for data transfer
- For more stable connection when using multiple devices, connect a PD power adaptor to the USB-C PD port for extra power
