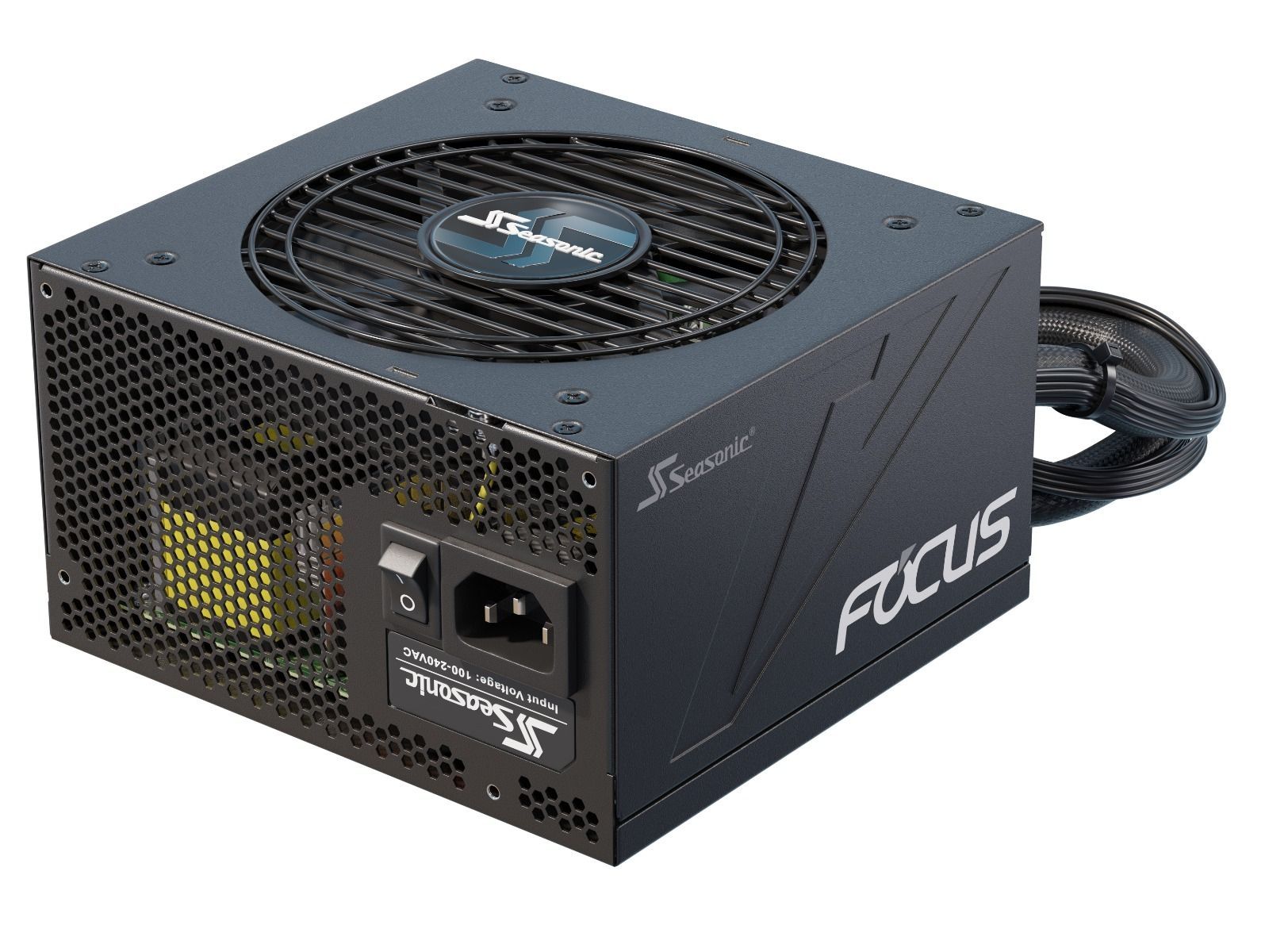

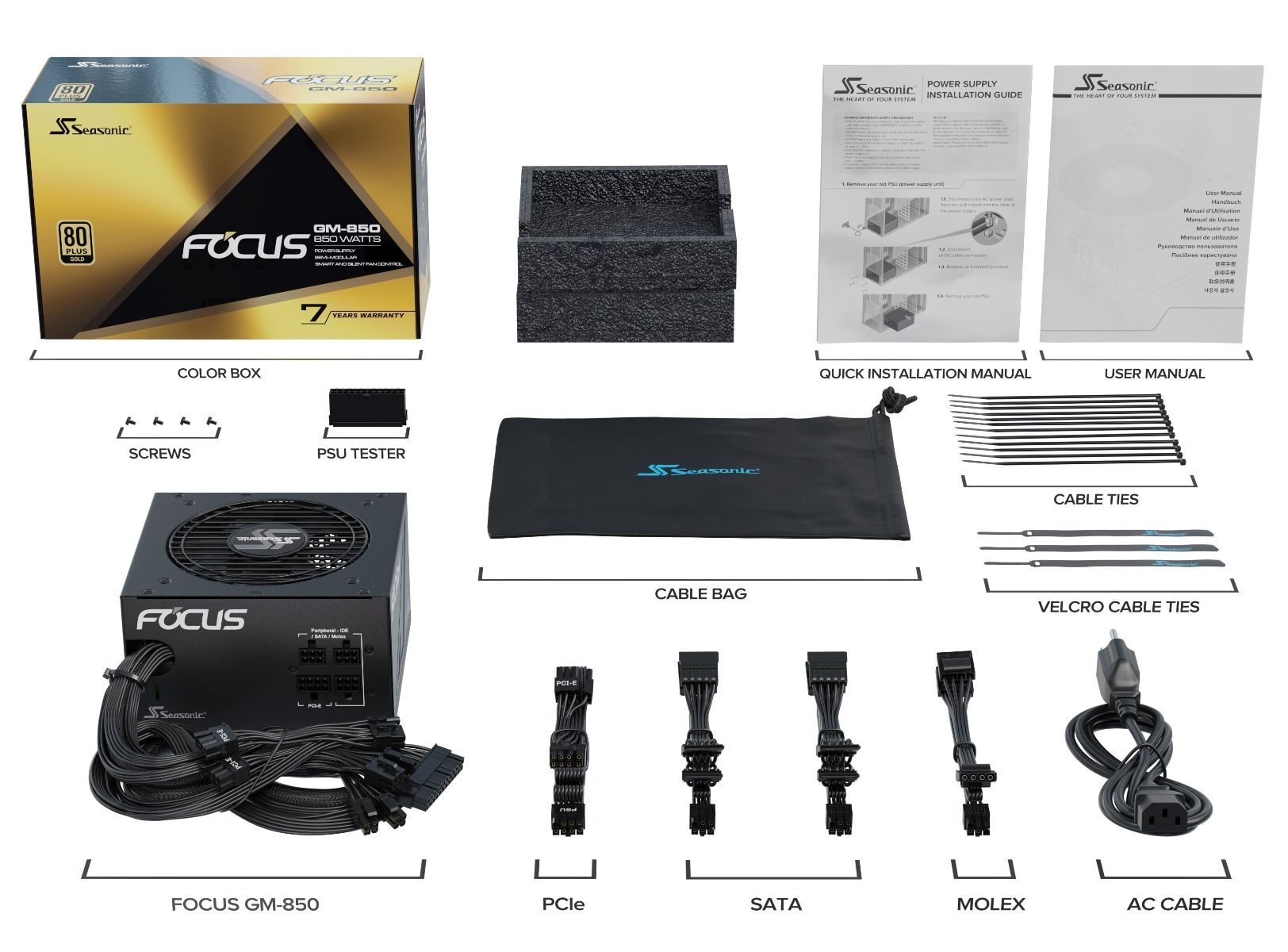

SeaSonic 850W FOCUS GM-850 Gold PSU (SSR-850FM) (OneSeasonic)

Name: SeaSonic 850W FOCUS GM-850 Gold PSU (SSR-850FM) (OneSeasonic)
Brand: Elegant Shopping eStore
SKU: V28-PSUSEAFOCUSGM850
Price: 230.57 AUD
Availability: InStock

Sale price $230.57 AUD

Regular price ~~$338.95 AUD~~

https://elegantshop.com.au/products/seasonic-850w-focus-gm-850-gold-psu-ssr-850fm-oneseasonic

Quantity

Add to wishlist

Compare

Barcode: 4711173875468
Sku: V28-PSUSEAFOCUSGM850
Collections: N/A

Description

FEATURE SUMMARY

80 PLUS Gold certified

Semi-Modular Cables

Compact Size - 140 mm deep

Tight Voltage Regulation

Cable-free Connection Design

S2FC - Smart and Silent Fan Control

DC to DC Converter Design

Multi-GPU setup

Gold plated connectors

7 years warranty

Specifications

Technical Specifications
80PLUS		Gold
Form Factor		Intel ATX 12 V
Dimensions		140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information	Fan Size	120 mm
	Fan Control	S2FC
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 C, 15 % - 65 % RH
Cable Information	Modularity	Semi-modular
Cable Information	Cable type	Webbed cables (attached) Flat black cables(modular)
Electrical Features	Operating Temperature	0 - 50 C (derating from 100 % to 80 % from 40 C to 50 C)
	MTBF @ 25 C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		7 Years

Power Output
AC Input	Voltage: 100 V - 240 V
	Current: 12 - 6 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	70 A	0.3 A	3 A
	Maximum Power	100 W		840 W	3.6 W	15 W
	Total continuous power	850 W

Cables

Connector	Connector count	Cable count
Main Power (24/20 pins)	1	1
CPU (8/4 pins)	1	1
PCIe (8/6 pins)	6	0
PCIe (8/6 pins)	6	3
SATA	8	2
		0
		0
		0
		0
		0
Peripheral	3	1
Peripheral	3	0
Floppy	0	0

Specifications are subject to change without prior notice.
