【MAPP Propane Compatible】Designed for use with MAPP, MAP-Pro and propane gas cylinders, this TS8000 trigger-start torch head delivers concentrated high heat for soldering, brazing, heating, thawing and HVAC repair tasks;

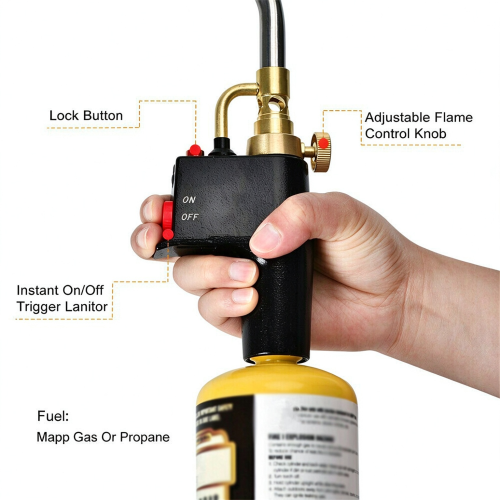

【Instant On/Off Trigger Ignition】Built-in ignition lets you start and stop the flame with one hand, without a separate lighter;

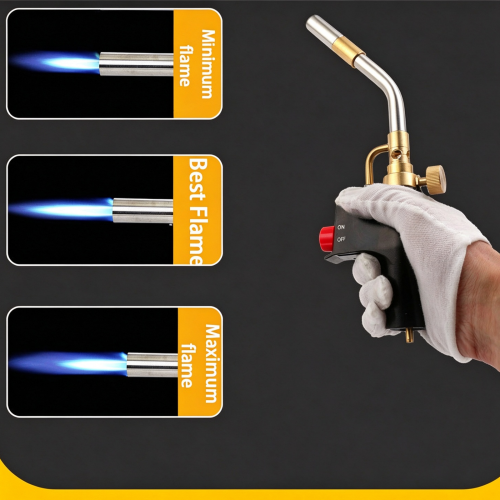

【Adjustable Knob 】The adjustable flame control knob can easily adjust the flame size to meet different needs in different scenarios;
【Durable Construction 】With push button igniter is made of a solid die-cast torch body and brass, comfortable to handle and resistant to high temperatures.Brass tip is removable and replaceable;
【Pressure-Regulated Flame Flame Lock】Built-in pressure regulation helps maintain a stable, consistent flame during use,supports continuous operation.

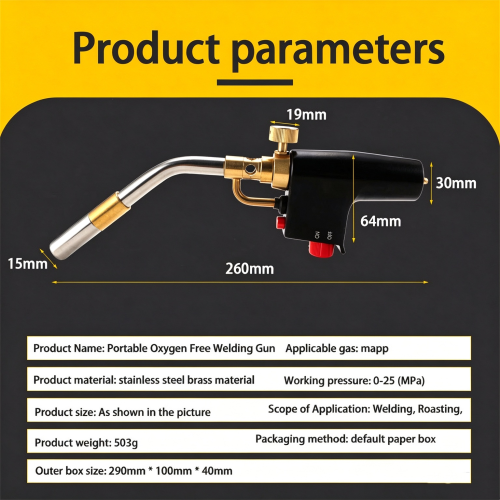

Specification:
Name: MAPP heating torch.
Size: 28 x 9.7 x 3.4 cm.
Soldering: maximum diameter 100 mm.
Brazing: maximum diameter 32 mm.
Welding temperature: 1300℃
Combustion temperature: 2800℃
Suitable for:MAPP or propane gas with interface standard CGA600
Package size: 28 x 9 x 3.7 cm.
Material: stainless steel.
Weight: 0.7 kg.

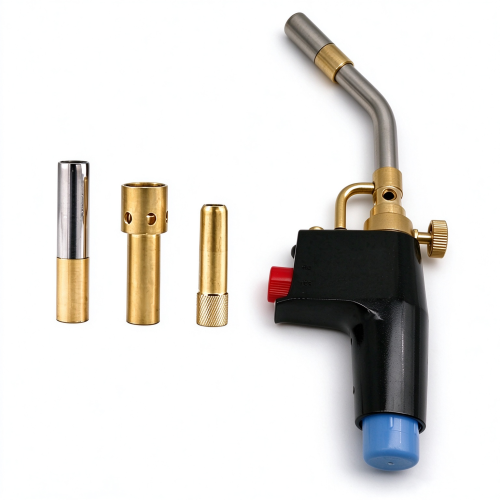

Package includes:
1 x MAPP burner.

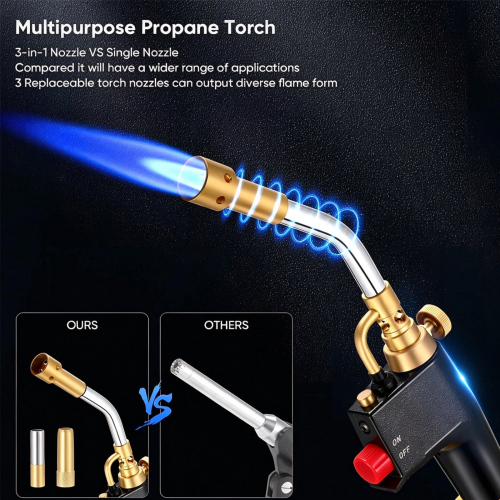

3 x interchangeable nozzles.
Torch Operation Manual
Cautions
1.The torch is for use with MAPP or PROPANE Gas.
2. The torch is for use with 14 OZ or 16 OZ cylinder,With the connection of CGA600.
3. Keep cylinders upright when in use.
4. The output of gas will be reduced until the torch is closed when the adjusting screw of regulator is turned clockwise (moving upward); And the output of gas will be increased until it reaches maximum when the adjusting screw is turned counter clockwise (moving downward).
5. The torch and cylinders must NOT be used at a closed space.
6. Low flame setting will result in overheating.
Operation Procedure
Connecting the torch
1.Confirm first the torch is suitable for use with the gas and pressure.
2.The thread of the torch that is used to connect the cylinder meets CGA600.
3.Use hand to connect the torch to the cylinder properly by screwing it on the cylinder.
4. Make sure there is no leakage of the connection between the torch and the cylinder and no leakage of the torch by using proper leakage testing ways mentioned below.
Igniting the torch
5.Turn the adjusting screw counter clockwise, at the same time, push the igniting trigger until the torch is ignited.
6.Adjust the adjusting screw until the flame meet your requirement.
7.Turn the adjusting screw clockwise until the flame goes off and the torch is fully turned off.
After Usage
8. After usage, turn OFF the torch, turn the adjusting screw to the close position, disconnect the torch from the cylinder, and put the cylinder at a place in open air where children could not reach.
9.For more information on the use of cylinders, please refer to cylinder manual.
