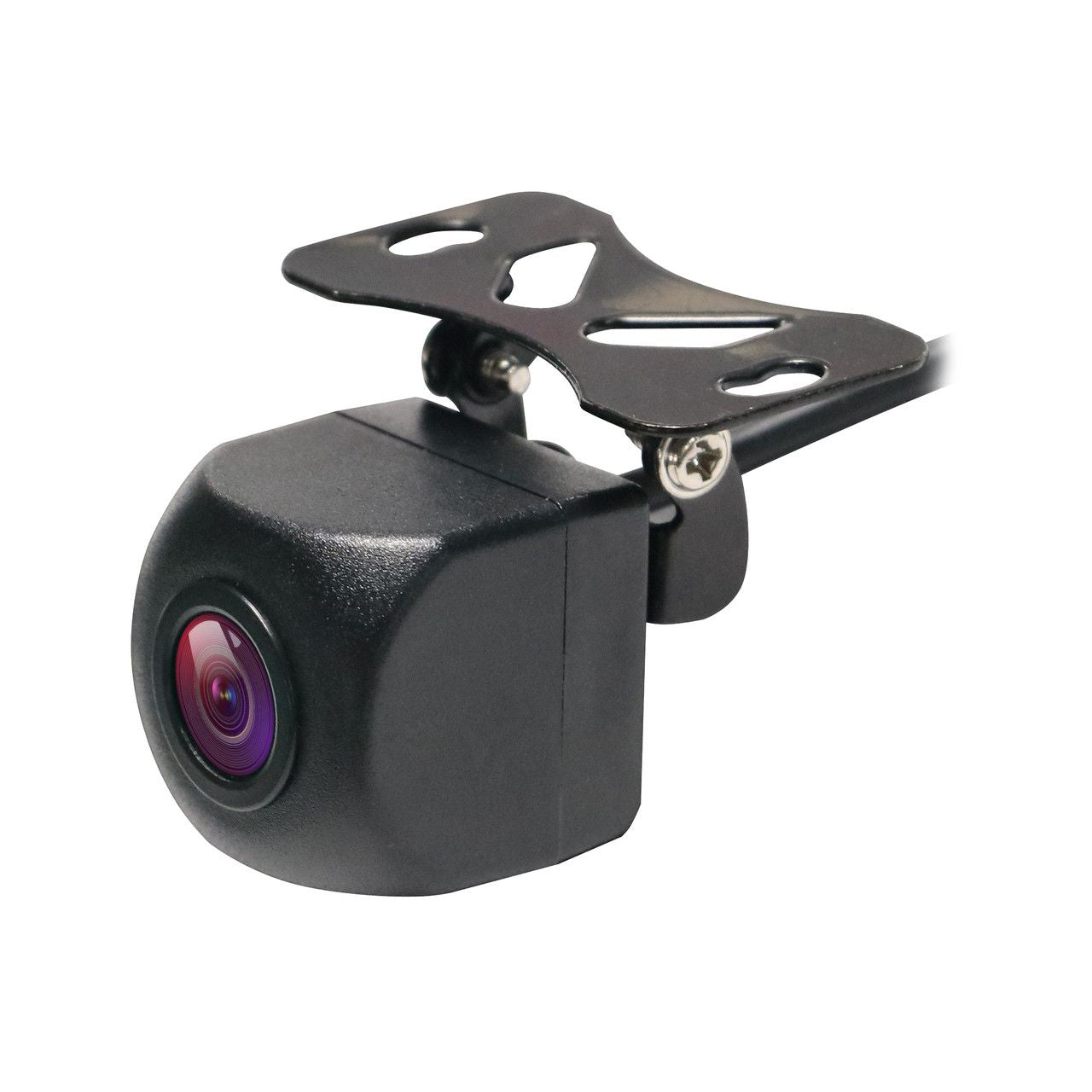

Small enough to be mounted in the tightest of spaces, this Navig8r universal reversing camera is suited for any monitor device accepting a 3.5mm phono plug (the most common).
Examples include an in-dash head unit, a dedicated reversing screen, reverse mirrors with monitors, and CarPlay / Android Auto devices. Once installed, it offers the driver a clear view of what's behind the car... night or day, rain or shine.
Key Features
-

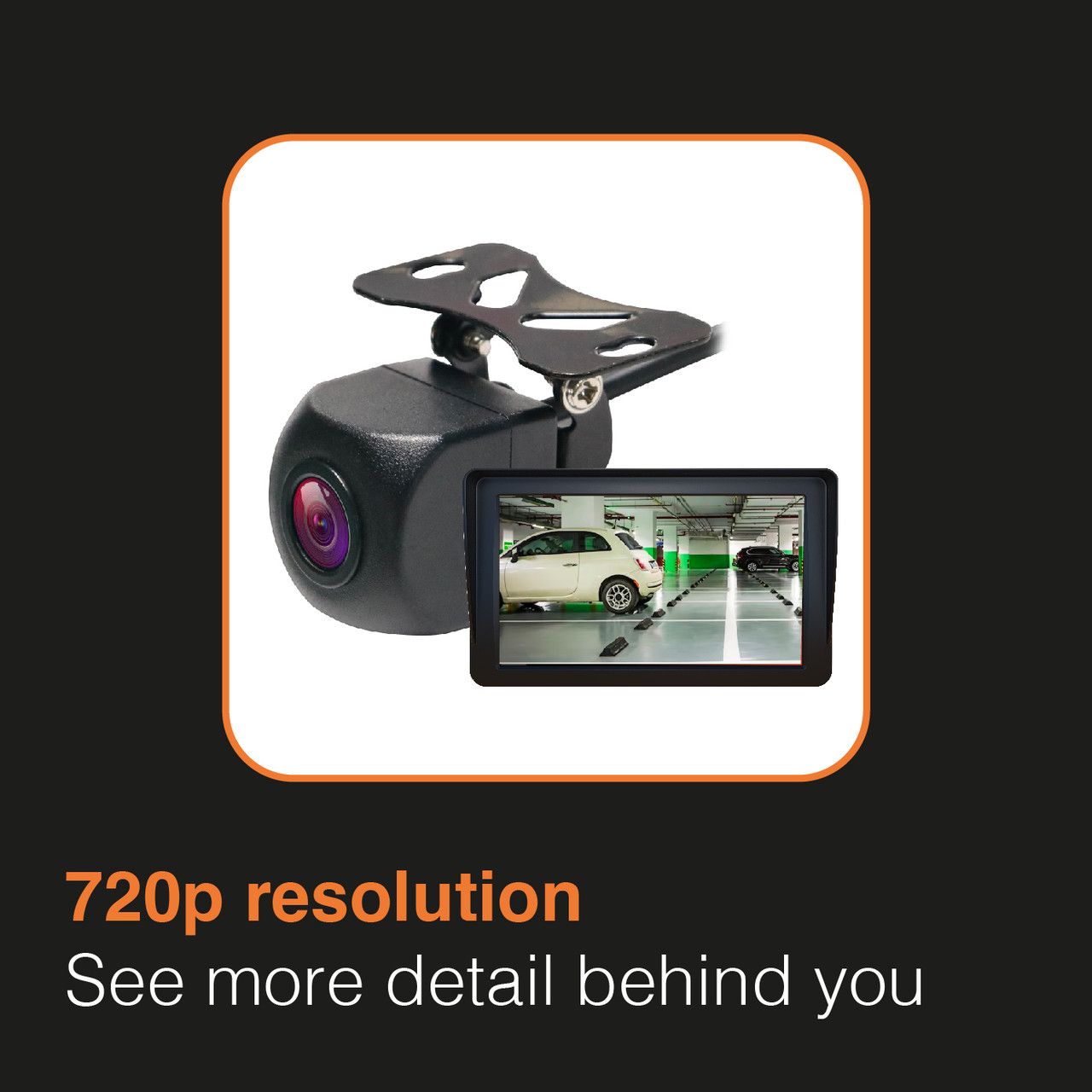

720p resolution- See more details behind you. With HD 720p resolution, you can see more details such as the curb, signs and of course, what's behind you. Is that a kid's bike you're about to back over?
-
Night Vision - See more detail at night. With improved low light and improved lens, you can now see more detail at night without the need for LEDs. Perfect for reversing into tight spaces at nighttime or in underground parking garages.
-

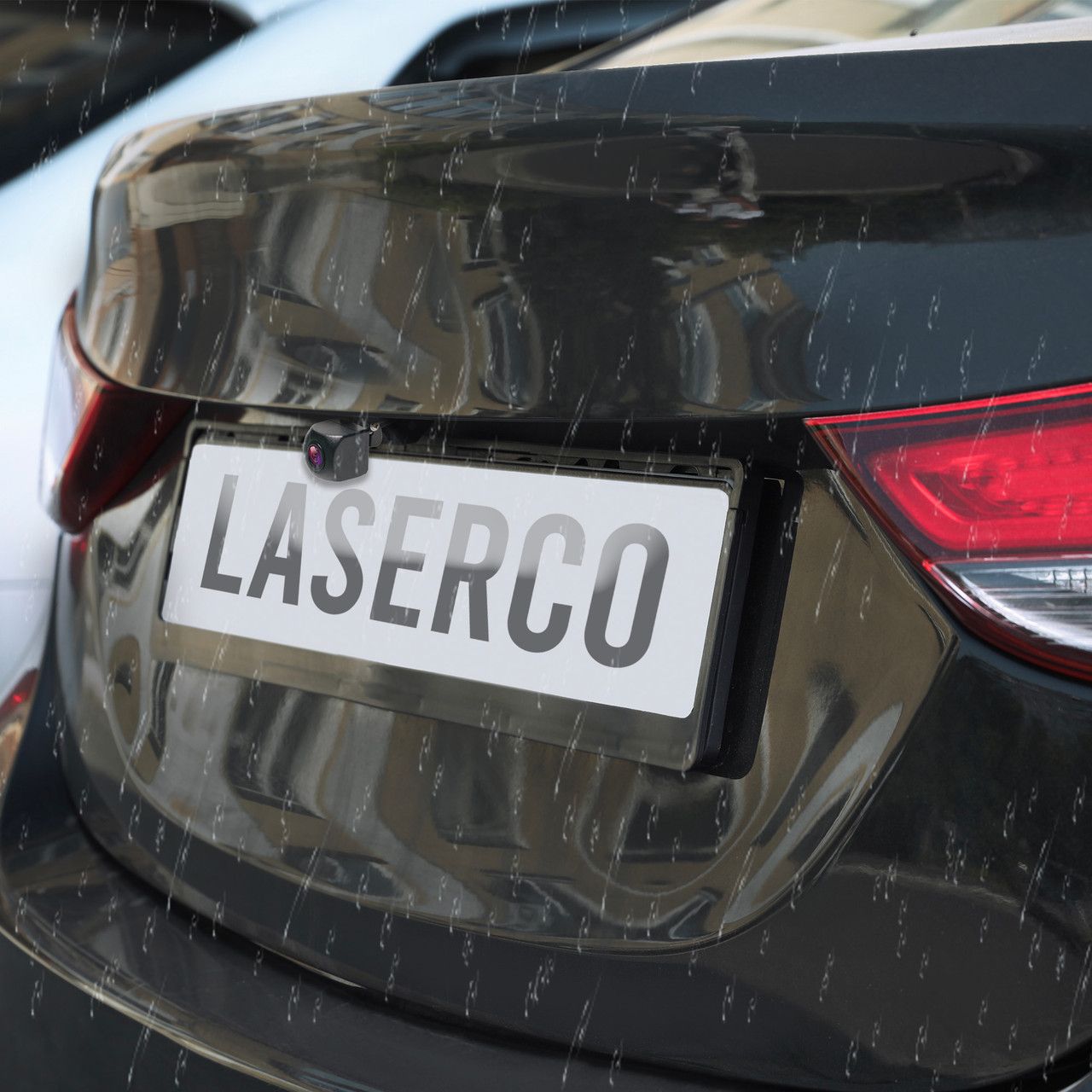

Weatherproof - IP67 Rating. Casing with an IP67 waterproof rating. So whether it's mounted above your license plate (ideal), under the roof spoiler or elsewhere on the rear of your car rest assured that it's safe from the elements
-

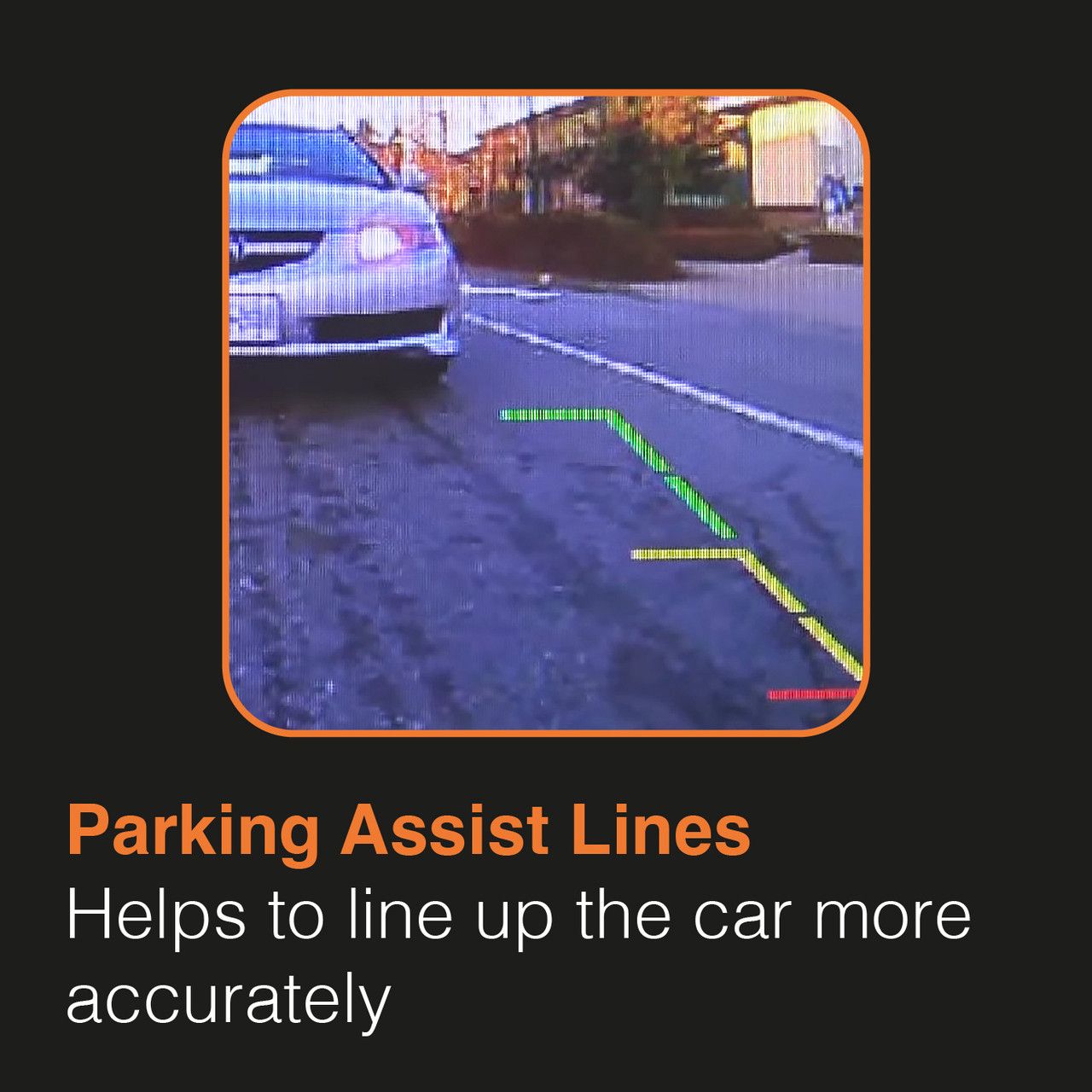

Parking Assist Lines - Helps to line up the car more accurately. The parking assist lines help to line up the car with colored lines appearing in the video image. Designed to assist with reversing into parking spaces, the static (they don't move) lines can help the driver position the car more accurately
-
Mounting Kit - Includes screws, tape, and a 6-meter cable to connect your camera to your monitor device (be it CarPlay, a head unit or a dedicated reversing monitor).
-
Installation - If you know your way around a car... Then all you need to do is find the +ve trigger wire going into one of the reversing lamps. Simply splice/tap / connect into this wire, run the black wire to the ground (like a bolt on the chassis) then run the cable to the front of the car to where your screen is. The connector is a standard 3.5mm phono plug that carries the video signal back and the +ve trigger (from the reverse bulb). So, when you select reverse gear, the rear reverse light comes on which then sends a trigger signal to the device to show the rear video signal. Alternatively, consult with your local car stereo retailer or auto electrician to install it for you.
Not compatible with NAVC-7CP-931/7CPN962 Carplay screens.
