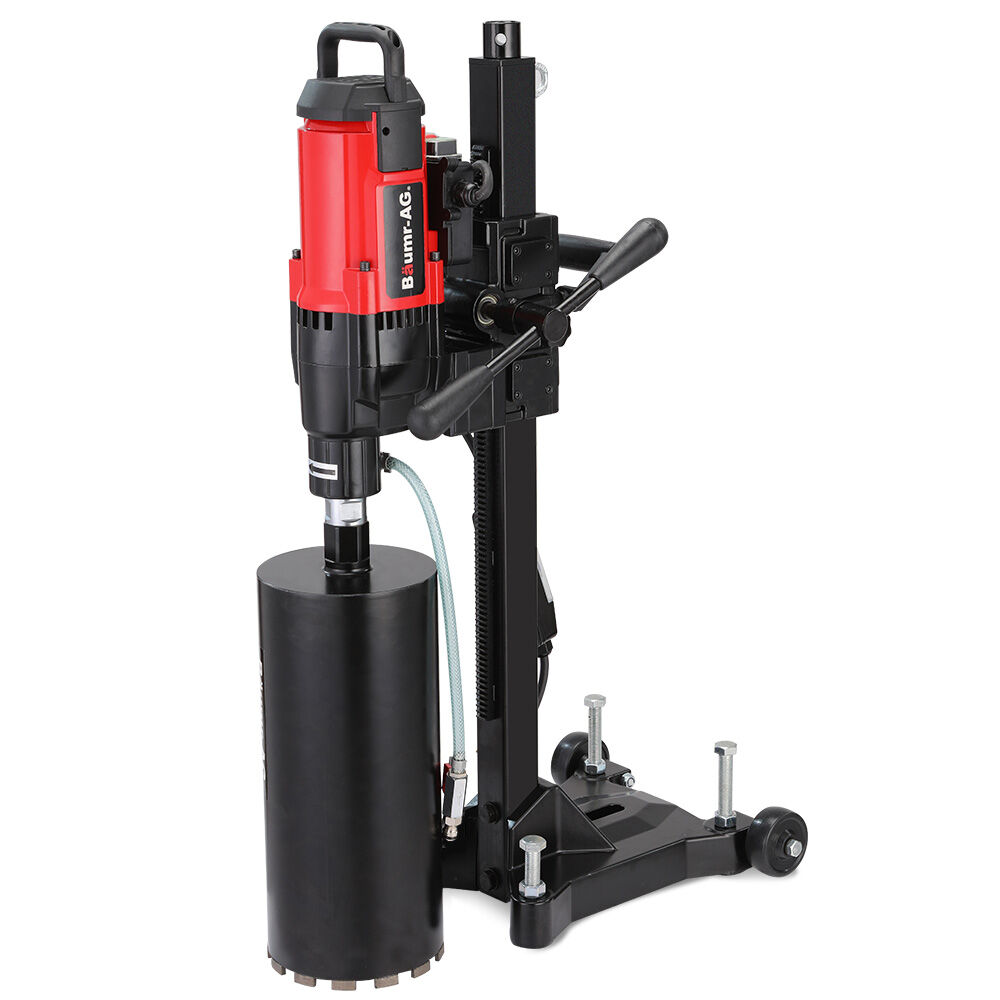

Take on demanding drilling tasks with this high-performance Baumr-AG Diamond Core Wet/Dry Drilling Machine with Wheeled Stand 127mm Drill Bit Combo. Featuring a powerful 3200W motor and 20-280mm max drilling capacity, youll cut through reinforced concrete, red brick, and granite with ease.
The adjustable wheeled stand provides stability and precision, mounting from 0-90 degrees for versatile positioning. Built to last, its IP54-rated aluminium construction ensures durability in harsh conditions.

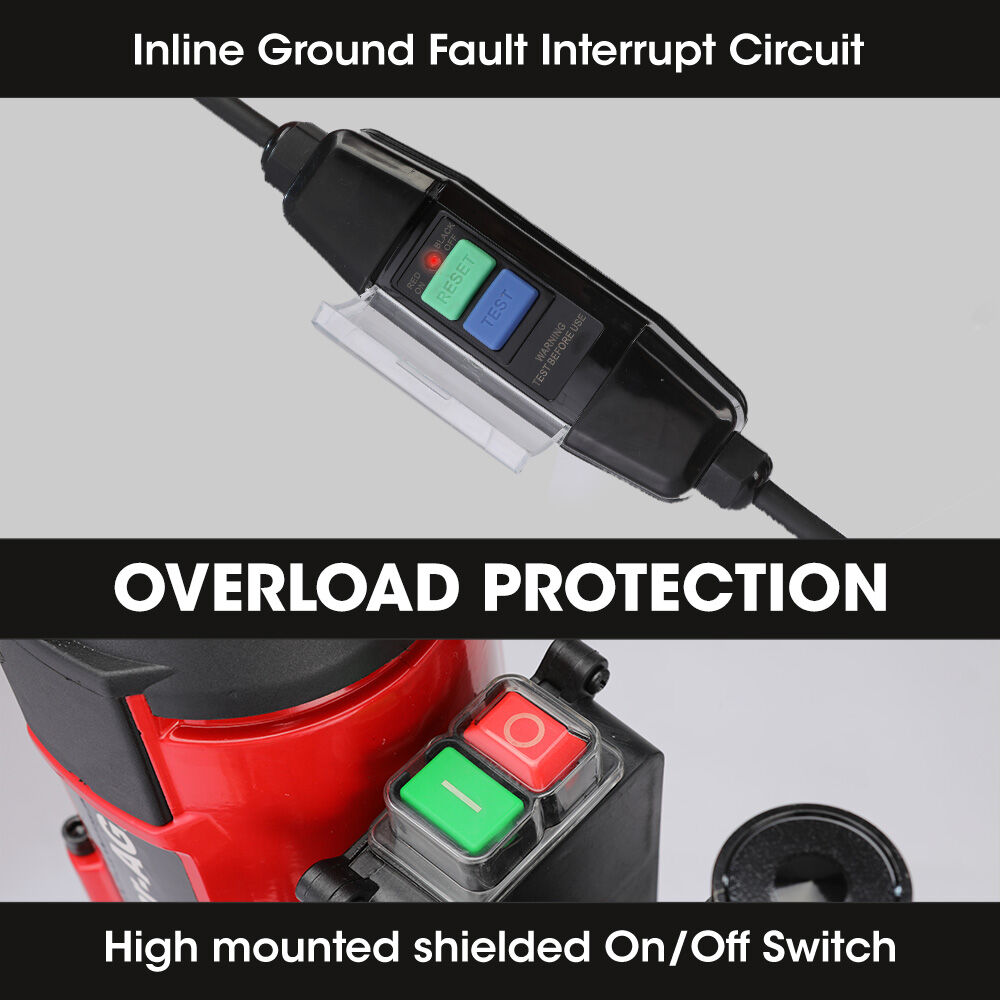

Designed for professionals, this rig offers safety-enhancing features like an automatic slip-clutch, inline circuit interrupt switch, and double insulation for operator protection.
Buy Smart. Buy Baumr-AG.

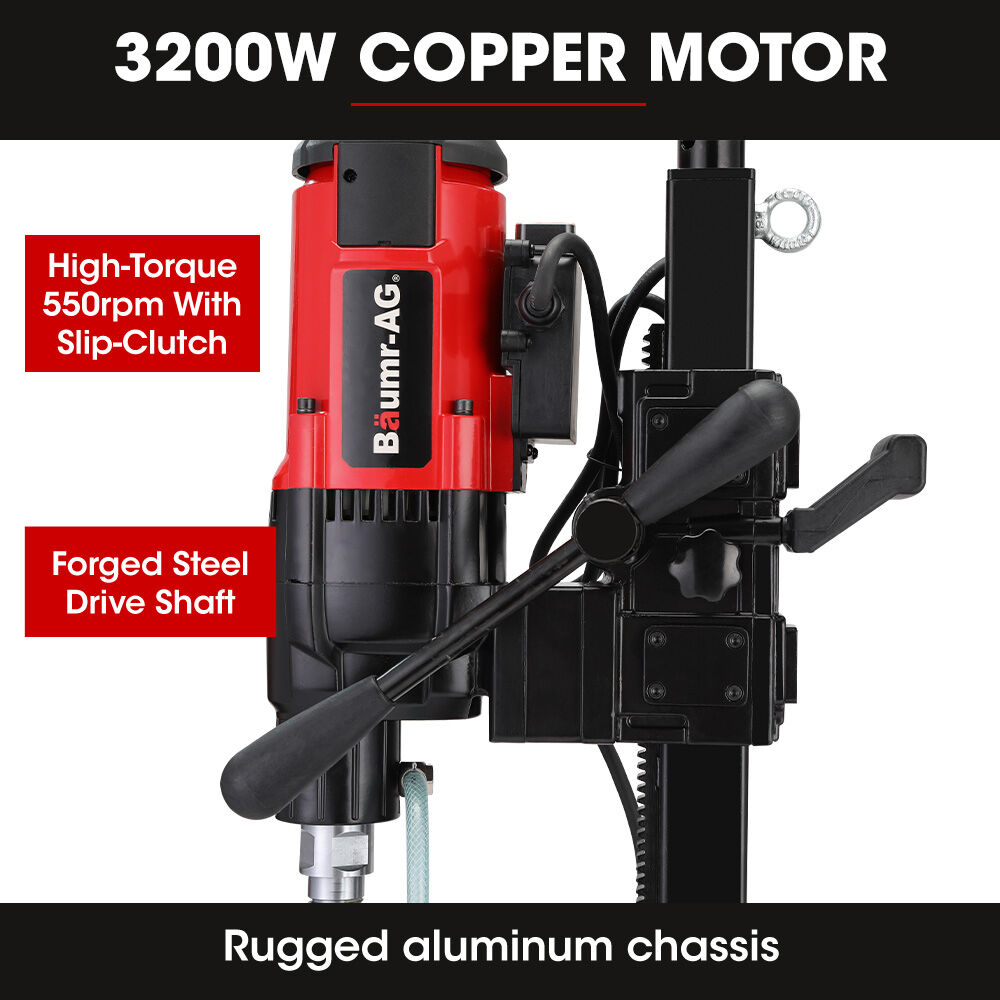

- Heavy-duty 3200W commercial-grade motor for consistent power
- 280mm maximum drilling diameter
- Includes 127mm diamond core drill bit for reinforced concrete, red brick, and granite

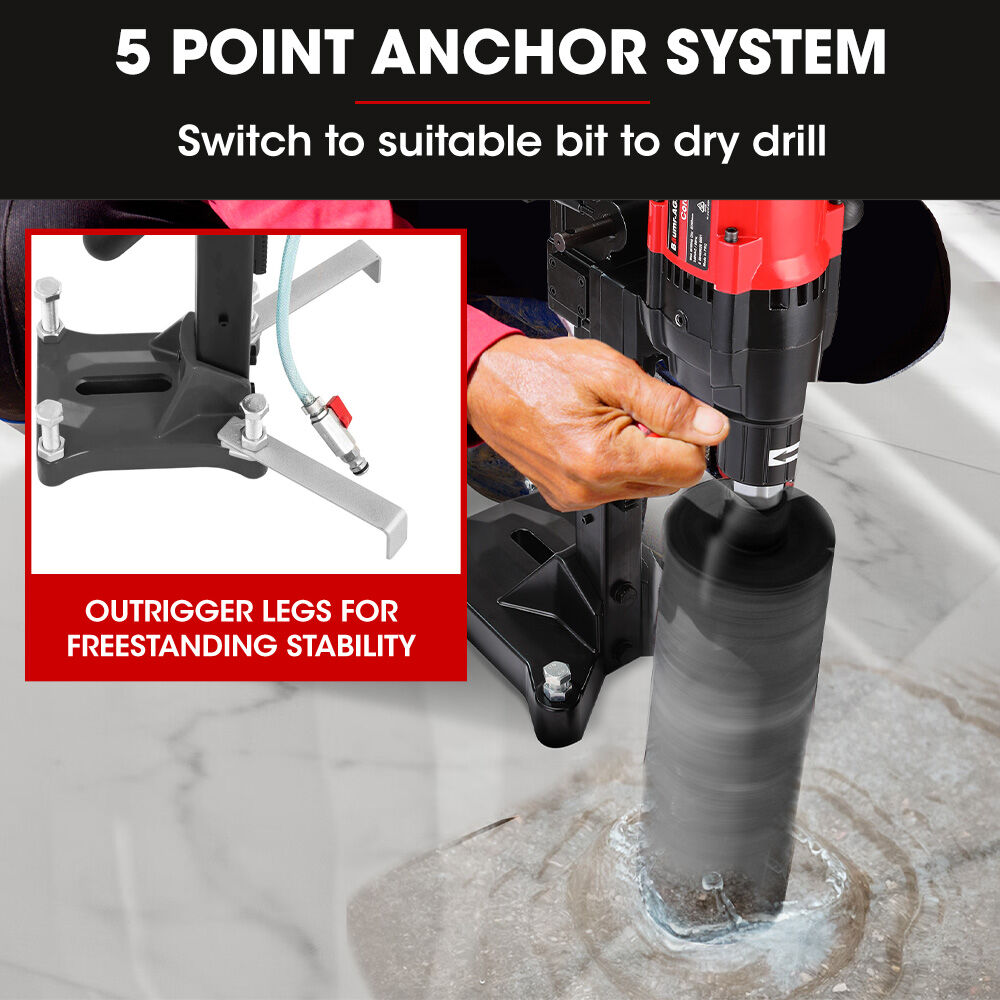

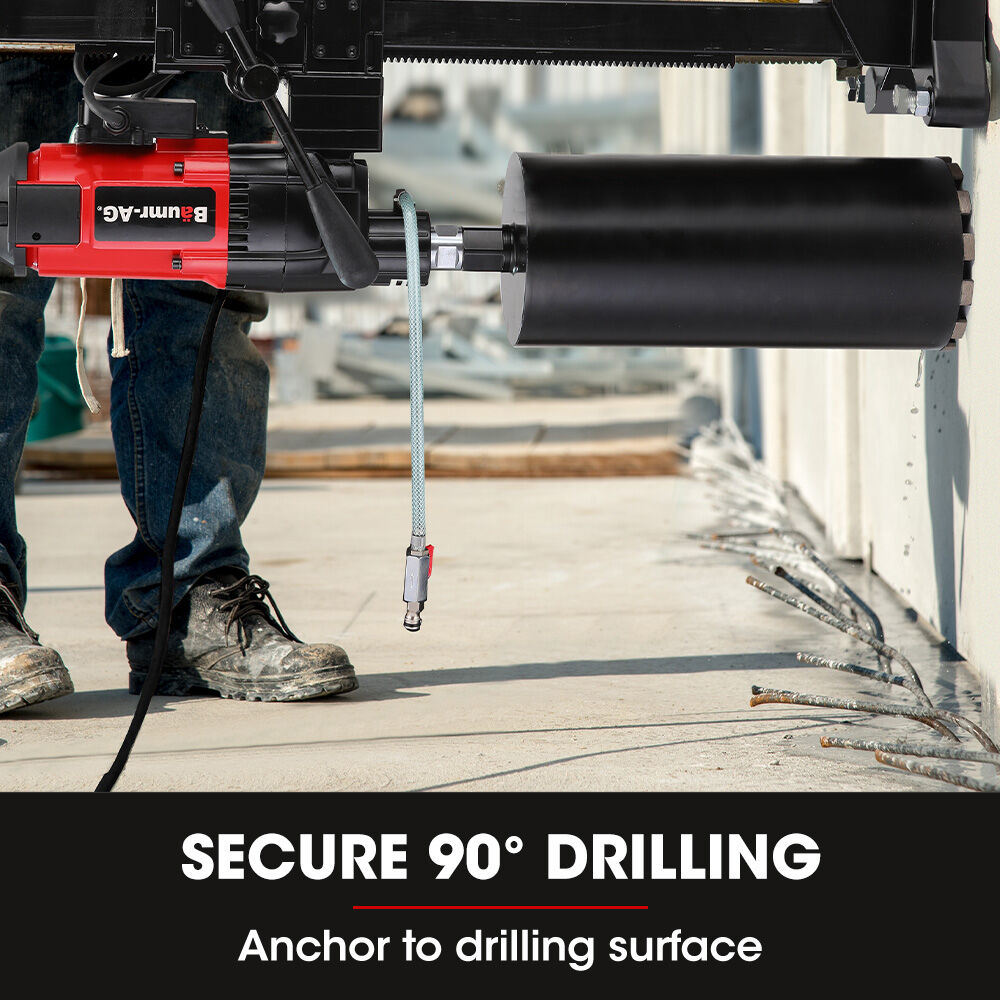

- Adjustable stand mounts from 0 to 90 degrees for vertical and horizontal drilling
- Wheeled base for effortless positioning and stability
- Copper motor for high reliability
- Slip-clutch system prevents overload and sudden bit seizing
- 550 RPM single speed for smooth and controlled drilling
- IP54 rating for dust protection and splash resistance
- Aluminium construction for durability in tough environments
- Steel-forged drill shaft ensures long-lasting performance

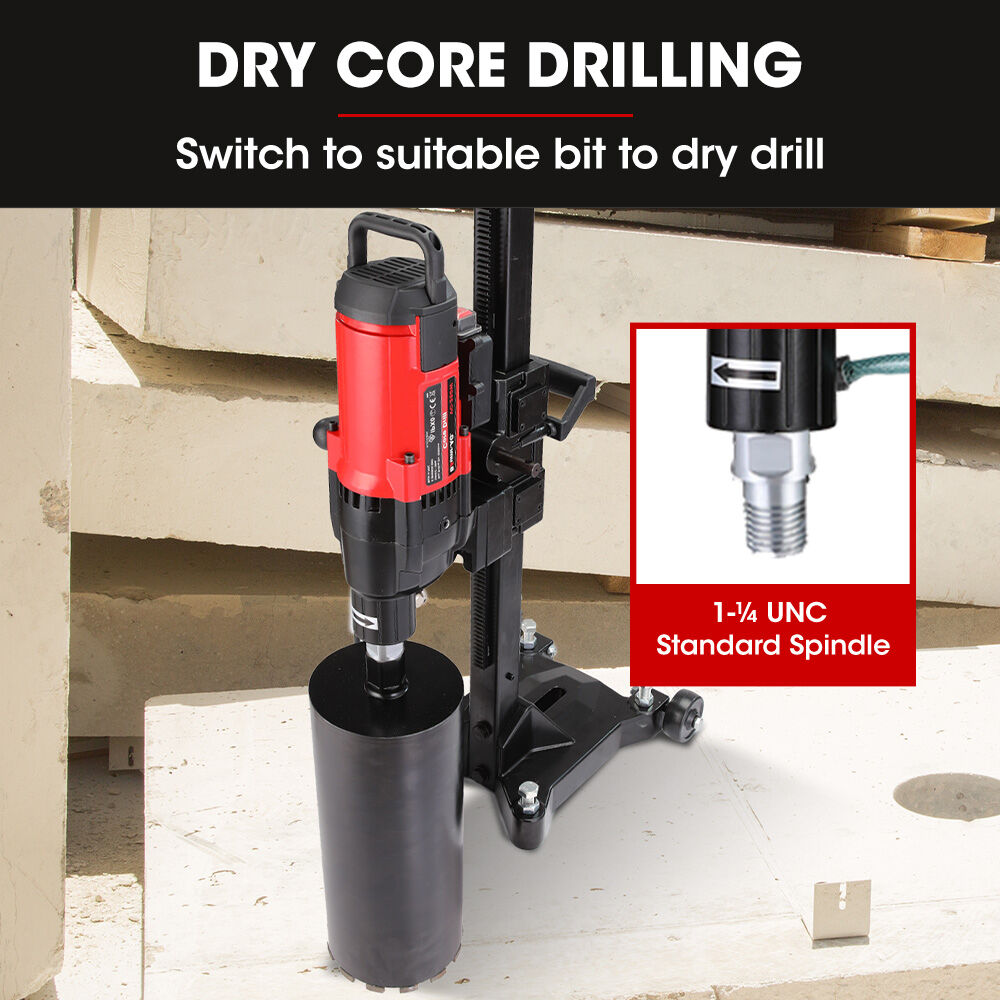

- 1 ¼ inch UNC standard-sized spindle thread

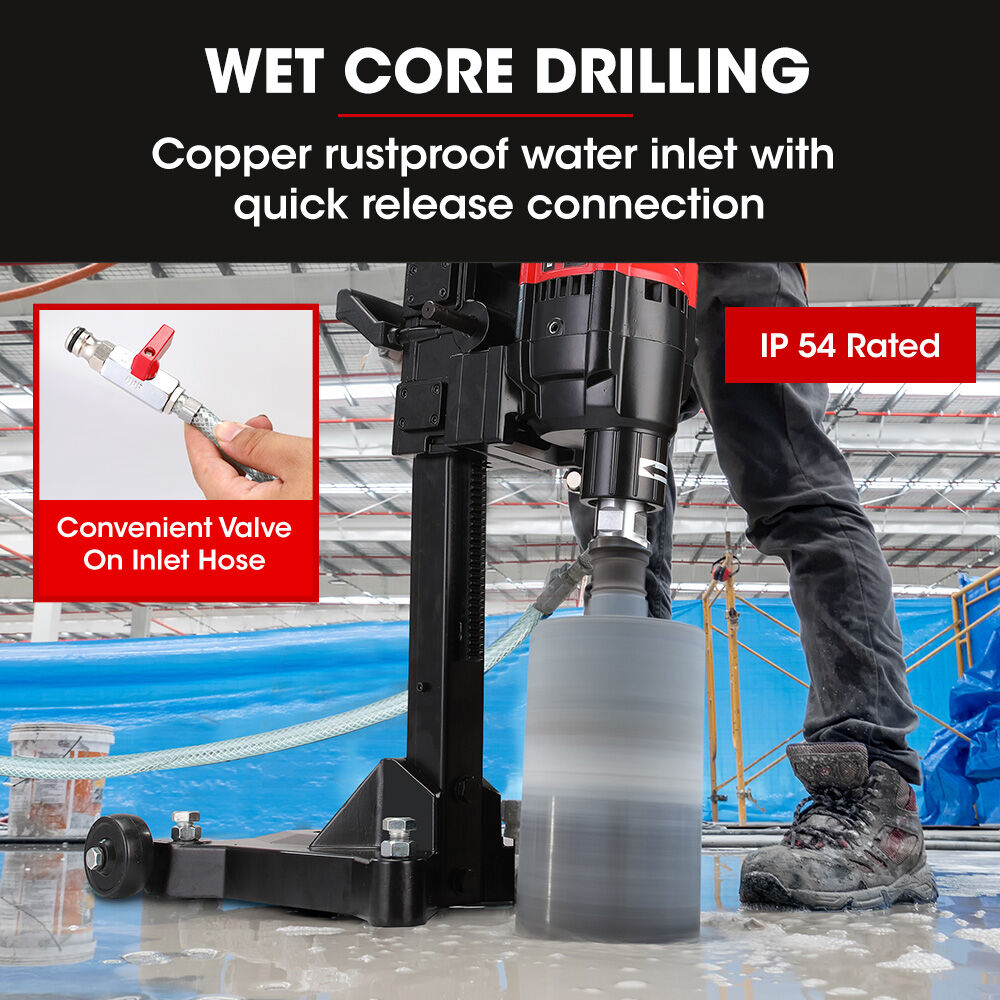

- The copper water inlet is corrosion proof
- Non-slip handle for a secure grip and fatigue reduction
- Double insulation for motor and operator protection
SPECIFICATIONS
280mm Core Drill
-
Input Power: 240V 50Hz AC
-
Rated Output Power: 3200W
-

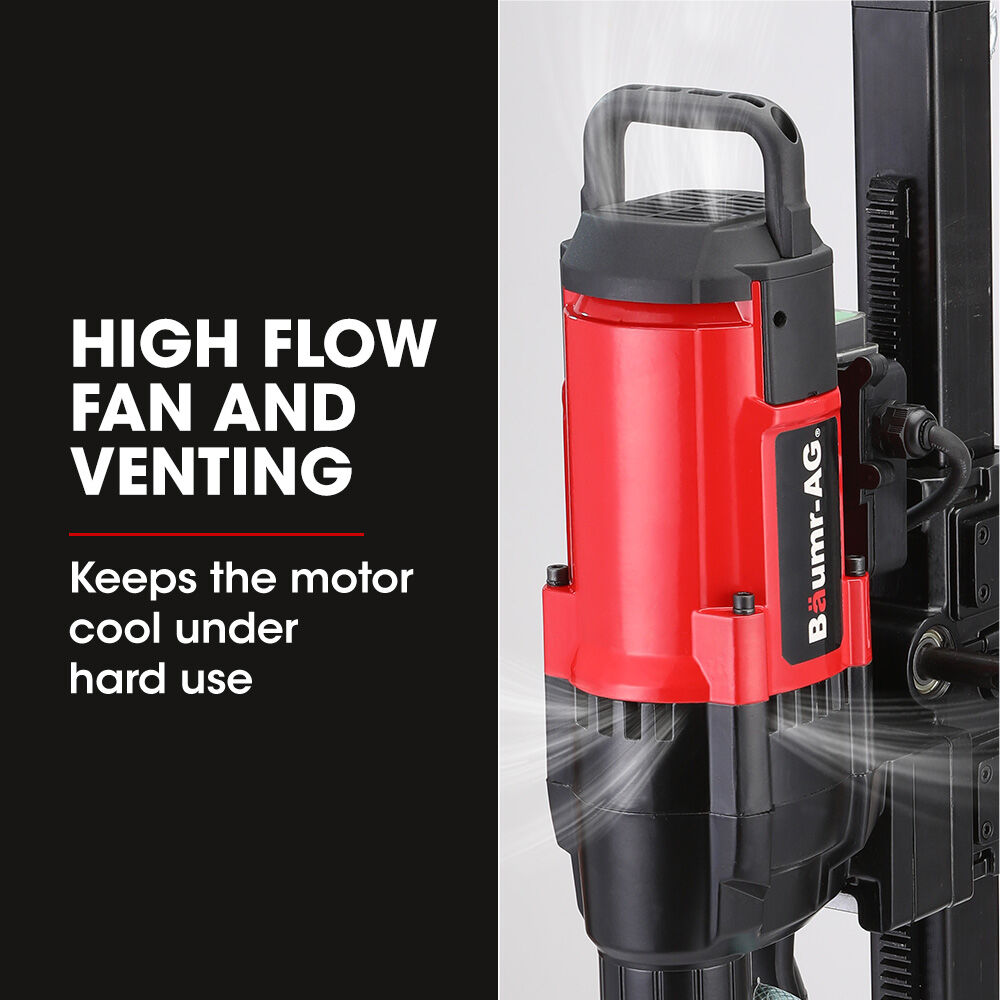

Cooling method: Air
-
No load speed: 550r/min
-
Speeds: 1
-
Drilling Diameter Range: 20-280mm
-
Spindle Thread: 1-1/4" UNC
-
Coring Type: Wet/Dry Coring
- Construction Material:
-
Drill: Aluminium Chassis, Steel Forged Output Shaft, Copper Water Inlet, Copper Motor
-

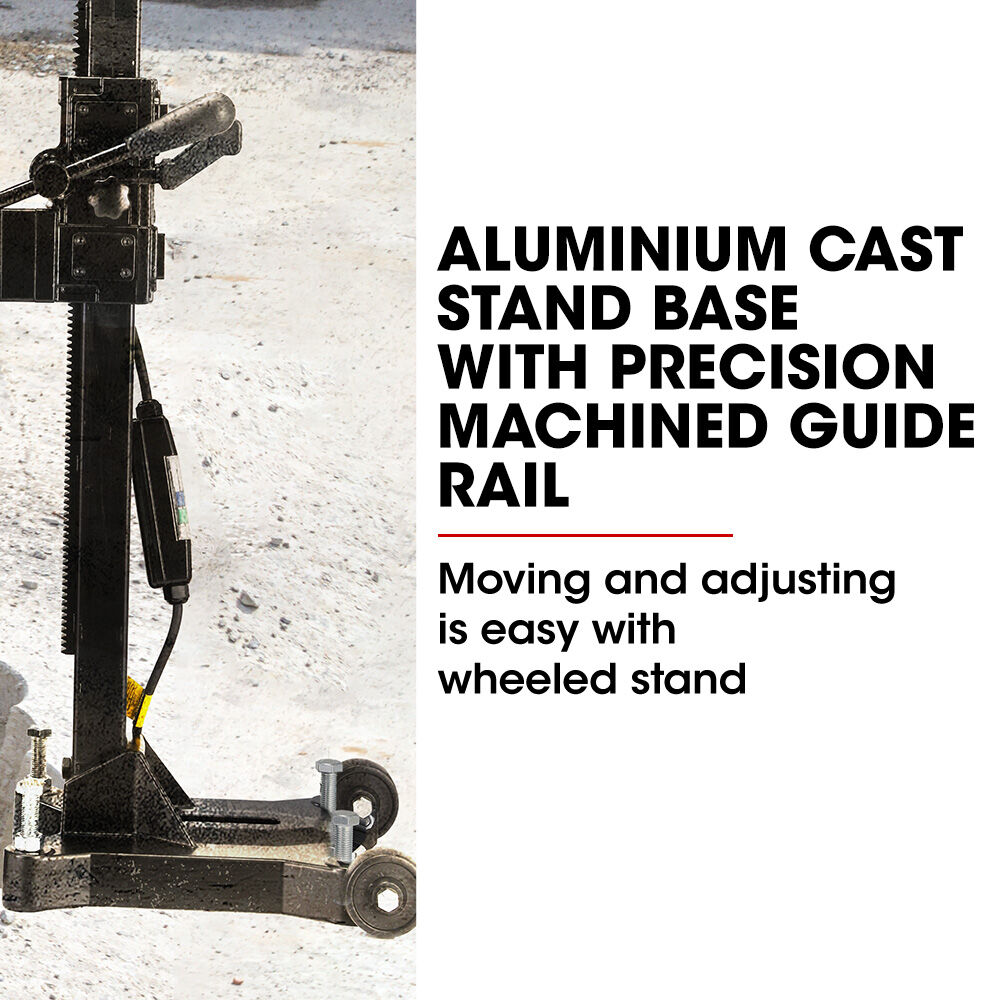

Stand: Aluminium Guide Rail, Steel Base
-
IP Rating: IP54
Diamond Core Drill Bit - 127mm
-
Cutting Diameter: 127mm
-
Length: 10mm
-
Type: Hole Cutter
-
Featured Refinements: Hole Saw
-
Shaft Material: Commercial Grade Steel
-
Cutting Teeth Material: Diamond/Steel Blend
-
Thread SIze: 1 1/4 UNC
-
Cutting Teeth Length: 10mm
-
Threaded Connection: 1 1/4 UNC
IN THE BOX
-
1 x Baumr-AG Core Drill
-
1 x Drill Rig (Assembly Required)
-
1 x Baumr-AG Diamond Core Drill Bit
- Note: User Manual is accessible online
SIZE WEIGHT
- 280mm Core Drill with Stand
-

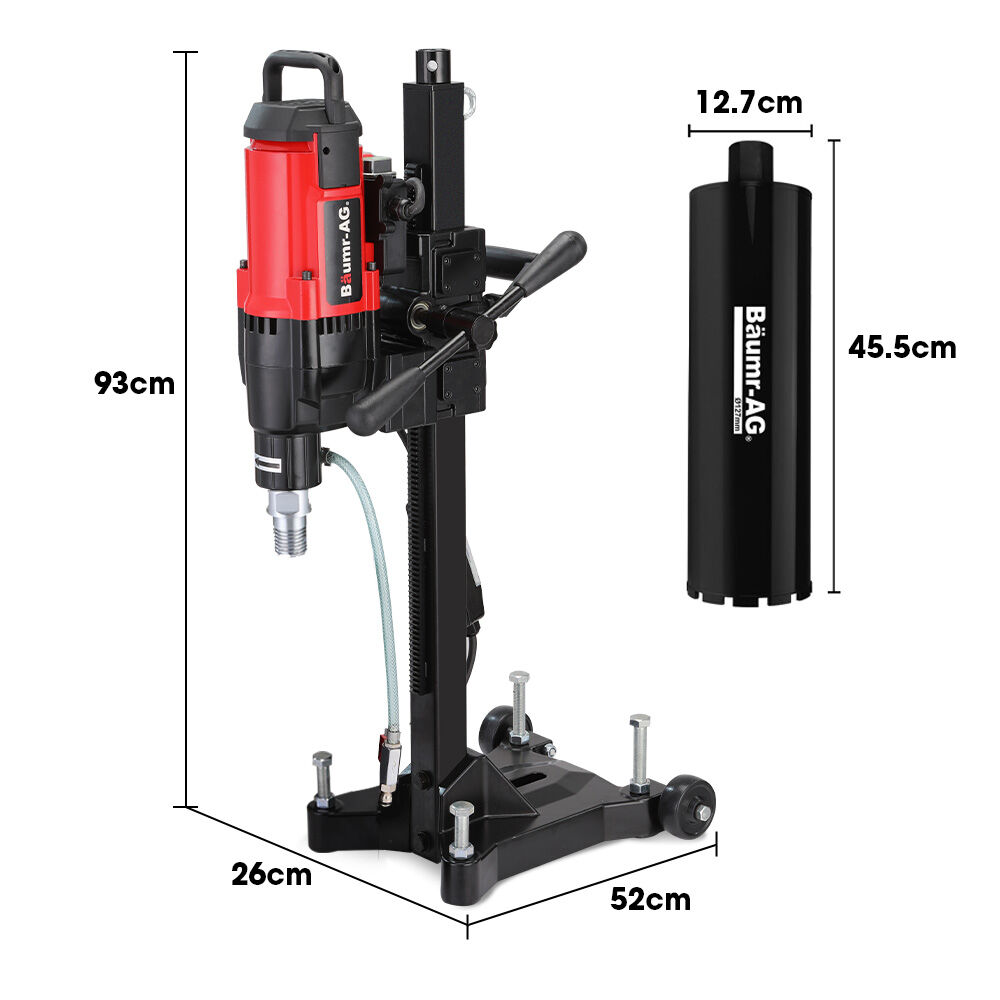

Product Dimensions (W x D x H): 260 x 520 x 930mm
-
Product Weight: 28kg
-
Carton Dimensions (W x L x H): 32 x 100 x 44cm
-
Carton Weight: 32kg
- Diamond Core Drill Bit - 127mm
-
Product Dimensions: 127mm x L455mm
-
Product Weight: 3.5kg
-
Carton Dimensions (W x L x H): 30 x 49 x 29cm
-
Carton Weight: 15.45kg
