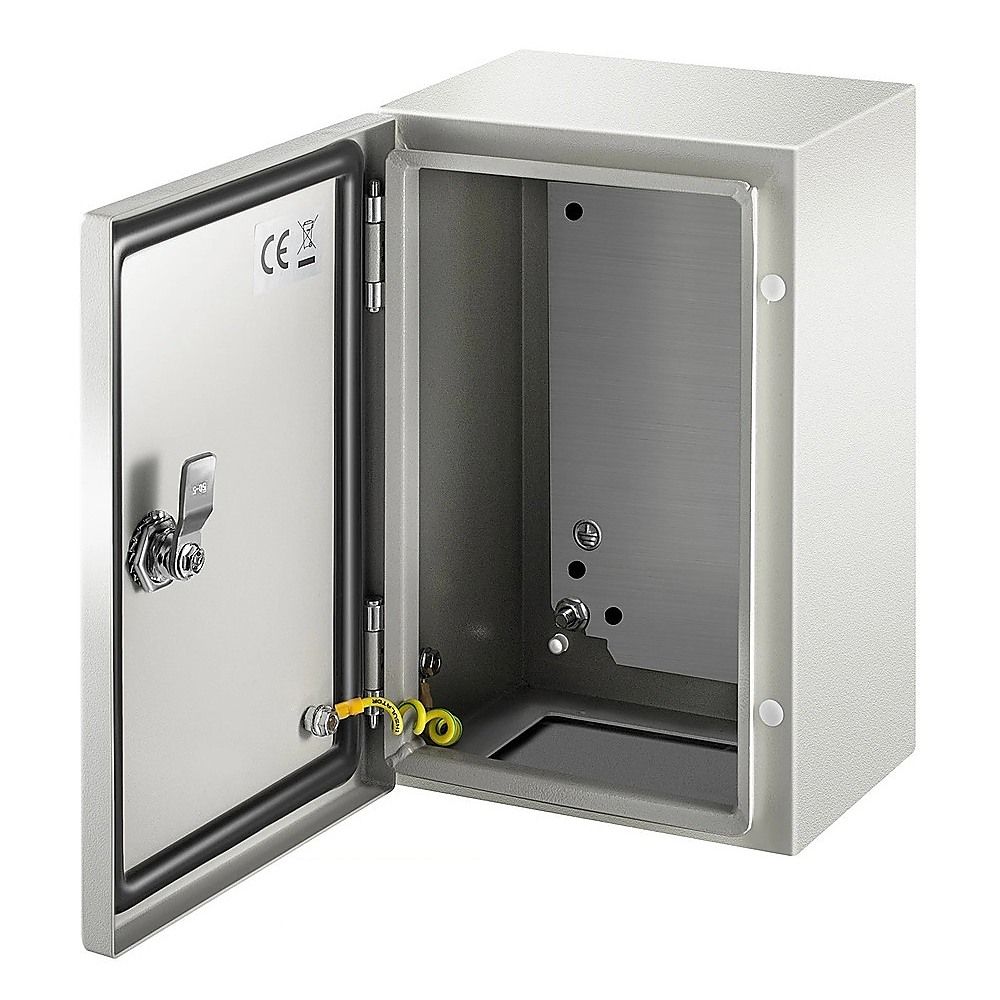

Protect your electrical components with this heavy-duty 300x200x150mm carbon steel electrical enclosure, engineered for demanding indoor and outdoor environments. Constructed from 1.5 mm cold-rolled steel with precision cutting and welding, it delivers excellent strength, wear resistance and long-term durability.
Rated to IP66, the enclosure features a high-performance foam sealing strip to guard against dust, rain, water and moisture ingress. The epoxy polyester powder-coated finish enhances corrosion resistance, making it suitable for factories, construction sites, commerc ial buildings and residential applications.
A reinforced hinged door and secure metal lock core improve safety and prevent damage from repeated use. The detachable 2 mm galvanised mounting backplate allows easy installation of circuit breakers, terminals and other electrical components. Pre-installed grounding screws, smooth cable cut-outs and a removable bottom outlet plate ensure safe and efficient cable management.
Designed for reliable circuit protection, this enclosure keeps internal equipment dry, secure and well organised.
Features:
-
1.5 mm cold-rolled carbon steel construction
-
IP66 dustproof and waterproof protection
-
Epoxy polyester powder-coated finish for corrosion resistance
- Reinforced hinges and lockable metal lock core
- 2mm detachable galvanised mounting backplate
- Pre-installed grounding screws
- Smooth cable entry cut-outs with removable bottom plate
- Wall mount design with rear fixing holes
Specifications:
- Colour: Grey white
- Material: 1.5 mm carbon steel
- Coating: Epoxy polyester powder coating
- IP rating: IP66 (designed to meet NEMA 1, 2, 4, 4X 12)
- Outer dimensions (H x W x D): 30 x 20 x 15 cm
- Inner dimensions (H x W x D): 29.7 x 19.7 x 11.65 cm
- Mounting backplate: 25 x 15 cm, 2 mm thick galvanised steel
- Connection type: Hinged, lockable
- Net weight: 4.25 kg
Package Includes:
- 1 x Electrical enclosure box
- 1 x Galvanised mounting plate (pre-installed)
- 2 x Keys
- 1 x Set of wall mounting brackets
- 1 x Bottom sealing plate
Ideal for protecting wiring, terminals and electrical equipment, this enclosure provides secure, weather-resistant performance in a wide range of applications.
