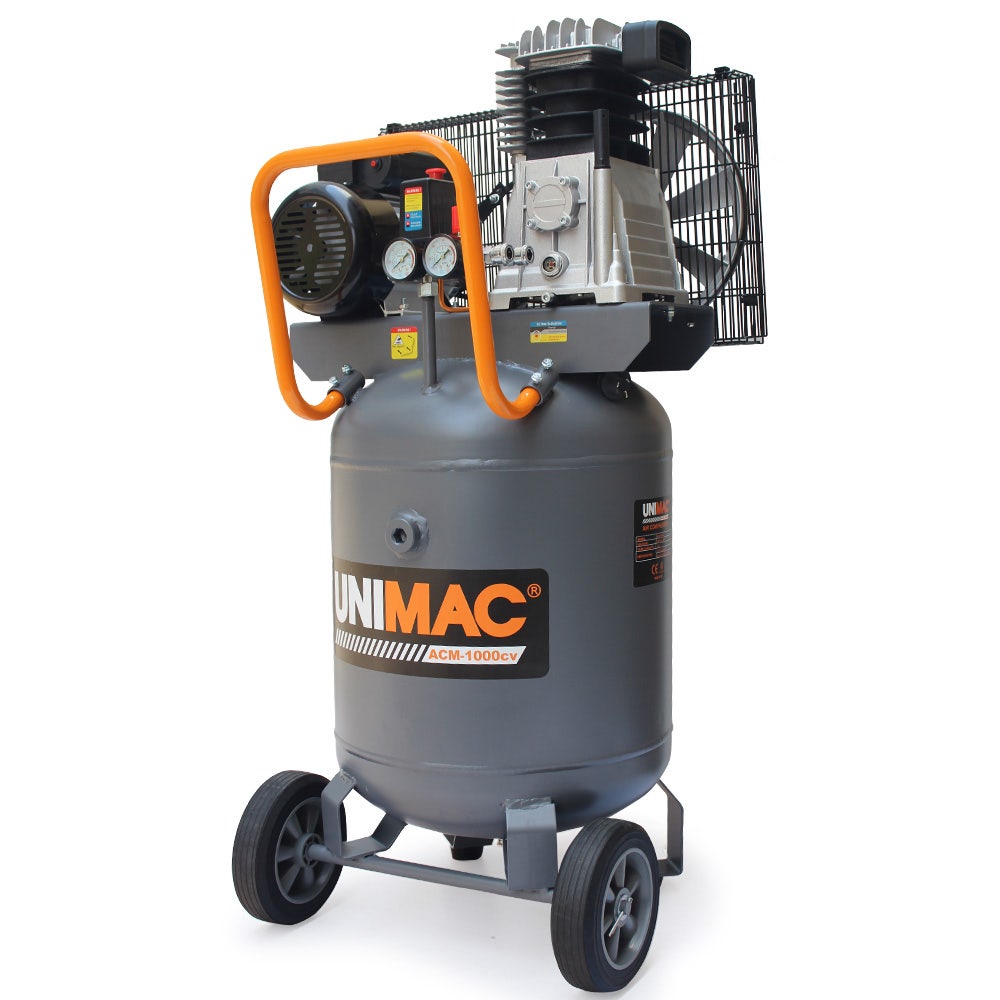

The Unimac ACM-1000cv Belt Driven Air Compressor combines strength, durability, and efficiency to meet the needs of professionals and serious DIYers.
ELECTRIC MOTOR AND BELT DRIVE

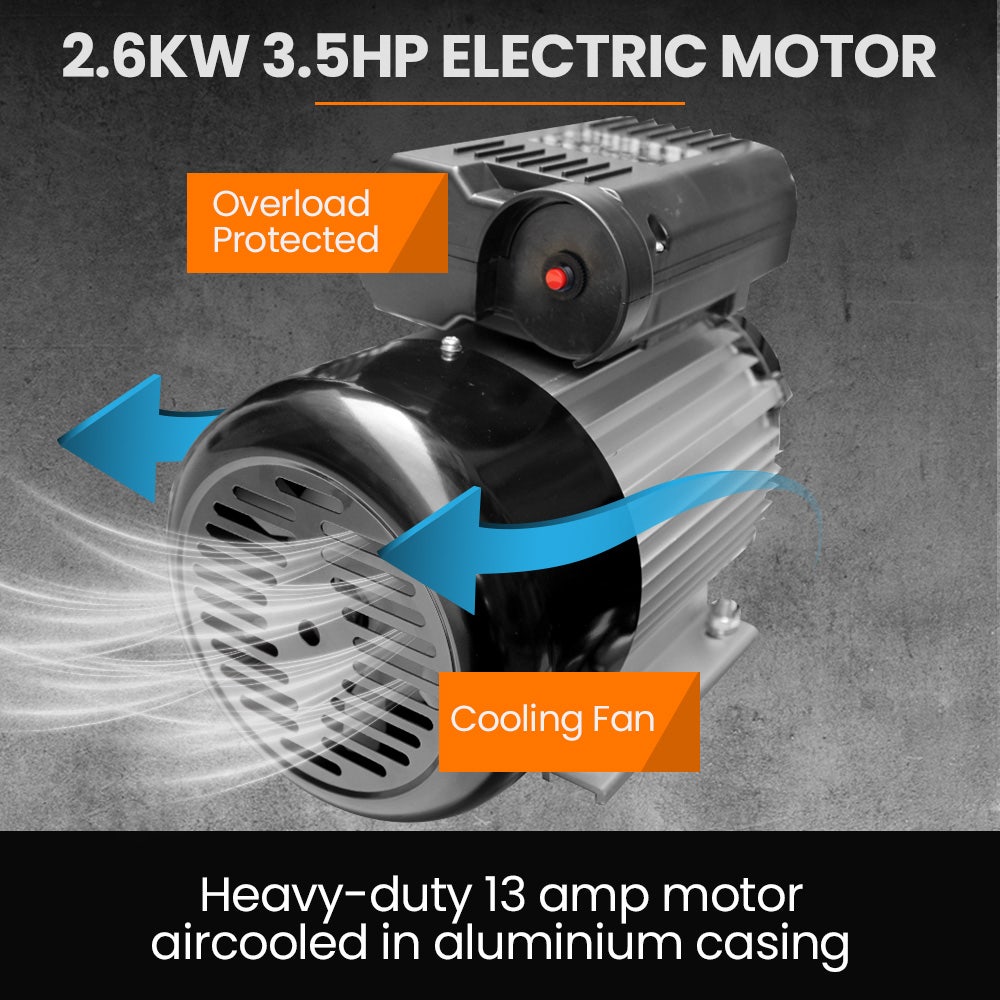

This system is a 3.5HP powerhouse that delivers exceptional airflow for heavy-duty tasks. The belt-driven design ensures reliability and longevity with smoother and more efficient performance. An automatic pressure control switch guarantees hassle-free and ease of use. The electric motor also has an overload protection circuit to safeguard it from damage in extreme environments.
COMPRESSOR MOTOR

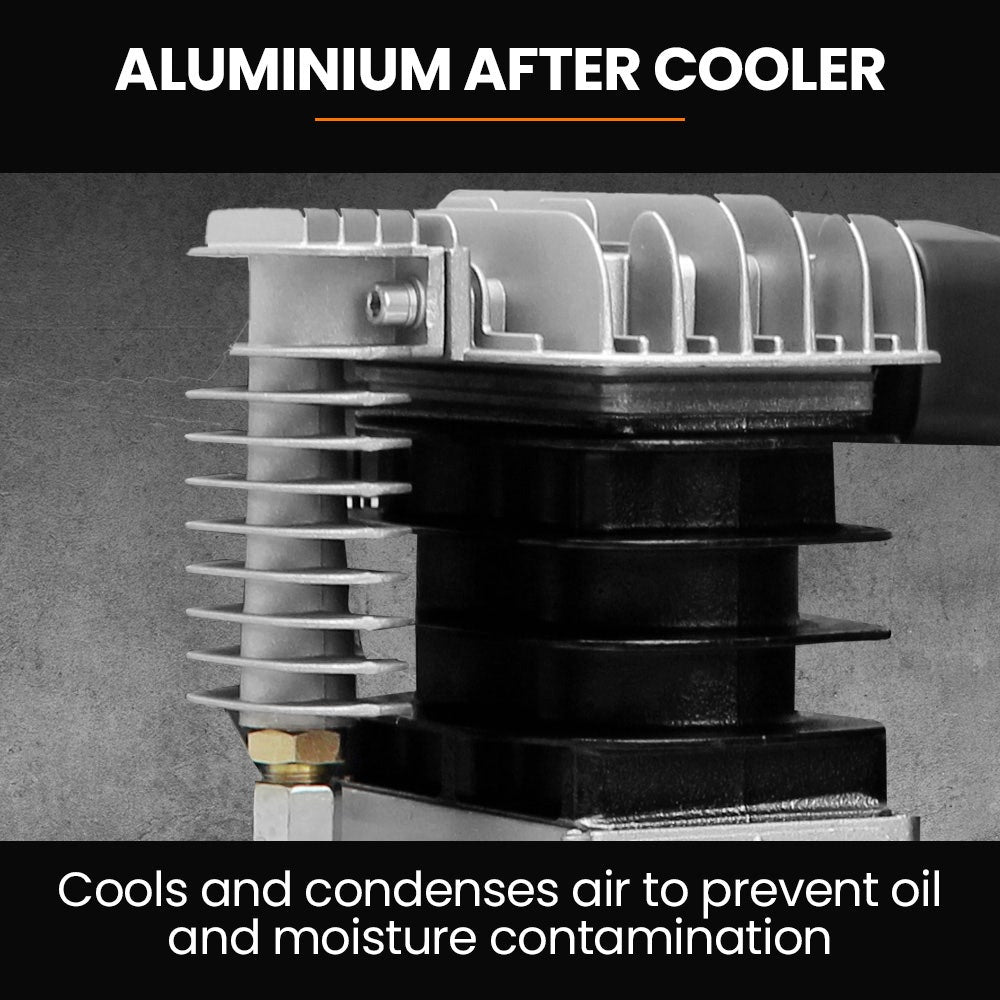

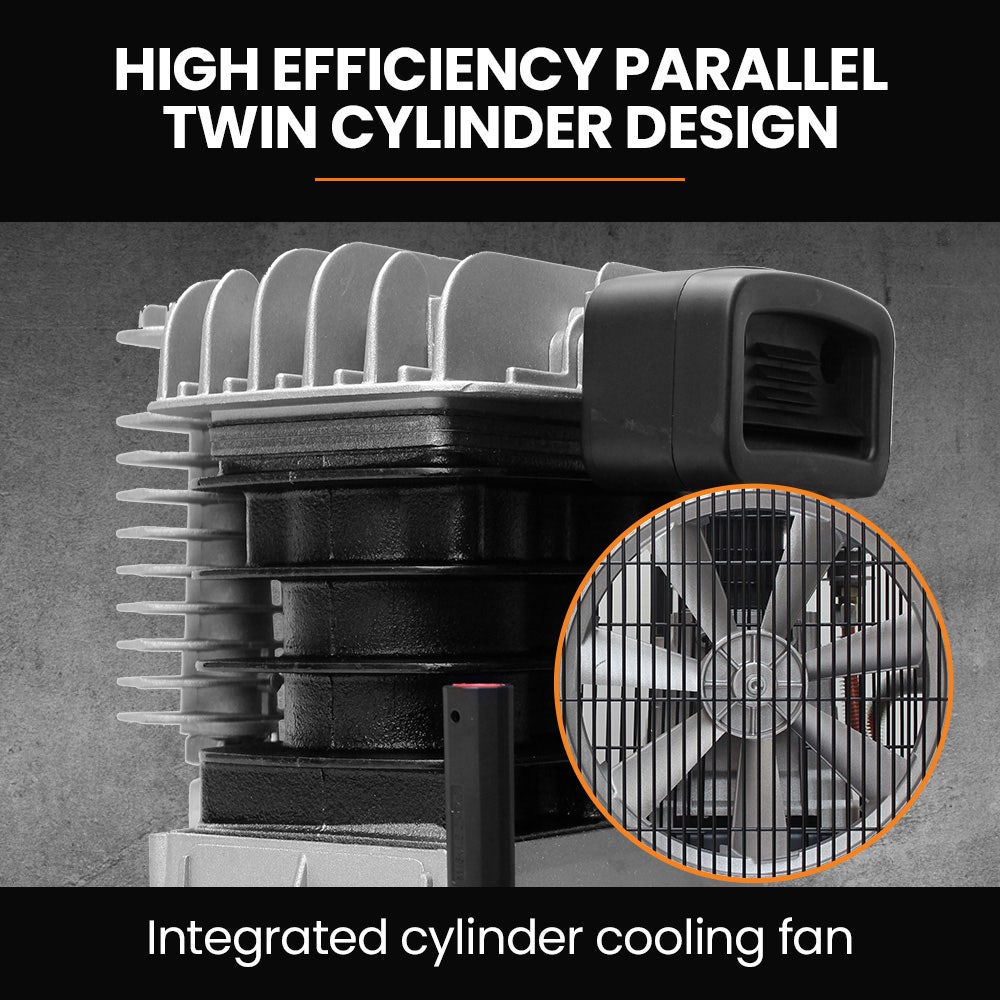

The heart of this machine is a robust cast iron parallel twin-cylinder compressor with aluminium pistons. The aluminium after-cooler is assisted by a fan integrated into the drive pulley. The cooler air output contributes to the compressor's overall efficiency and performance. The aftercooler helps ensure that less moisture ends up in your air hose protecting your tools from damaging moisture. The unit also features a pump speed of 950 rpm and a duty cycle of 0.75, ensuring consistent and reliable performance. The pump has an outstanding air displacement of 370L/Min (13.0 CFM), giving it powerful air delivery for demanding applications.
AIR OUTPUT AND MONITORING

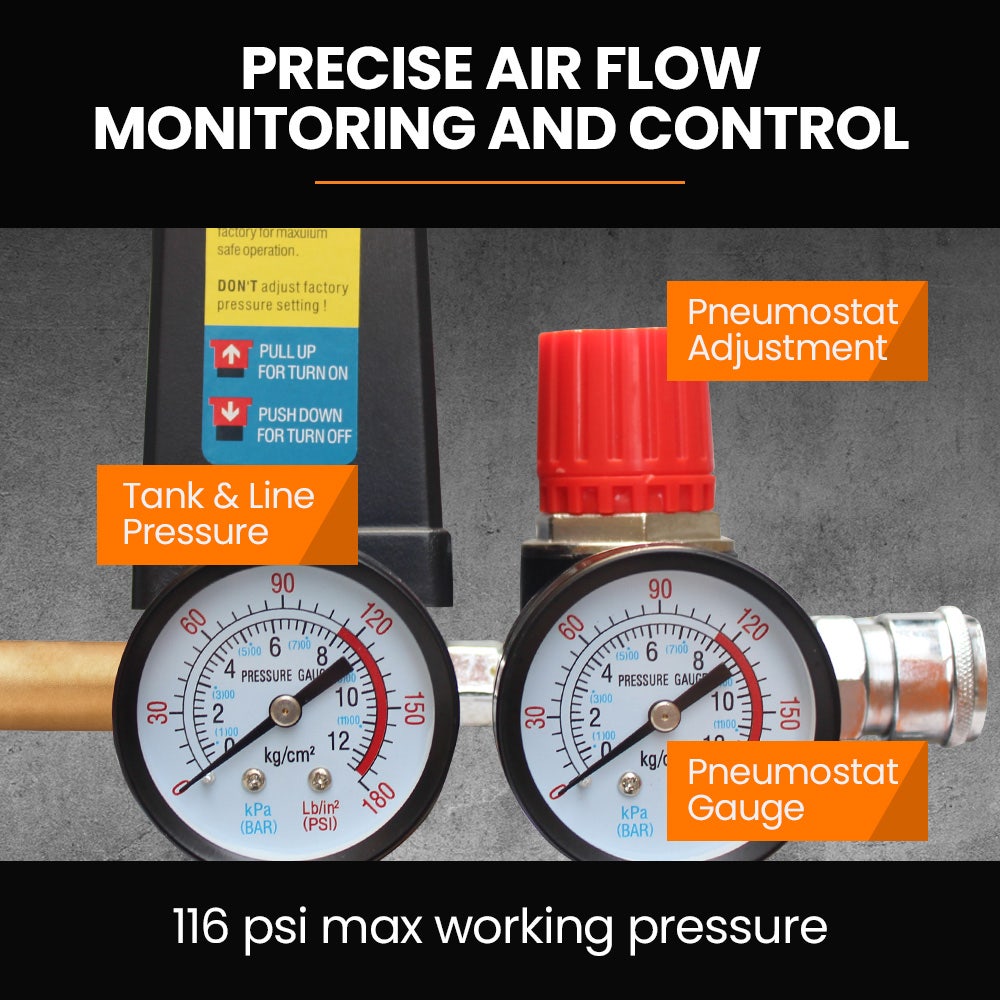

The Unimac ACM-1000cv features air output settings and monitoring. Designed for precision and control the dual gauges allow monitoring of tank, line and pnuemostat pressure, while dual outlets offer the convenience of using two tools simultaneously. The working pressure is set at 116PSI (8 bar) with a restart pressure of 86PSI (6 bar), providing a reliable operating range. It maintains consistent performance under pressure with free air delivery of 260L/Min at 7 bar (9.2 CFM), ensuring a steady and reliable air supply for your pneumatic tools.
TANK CONSTRUCTION

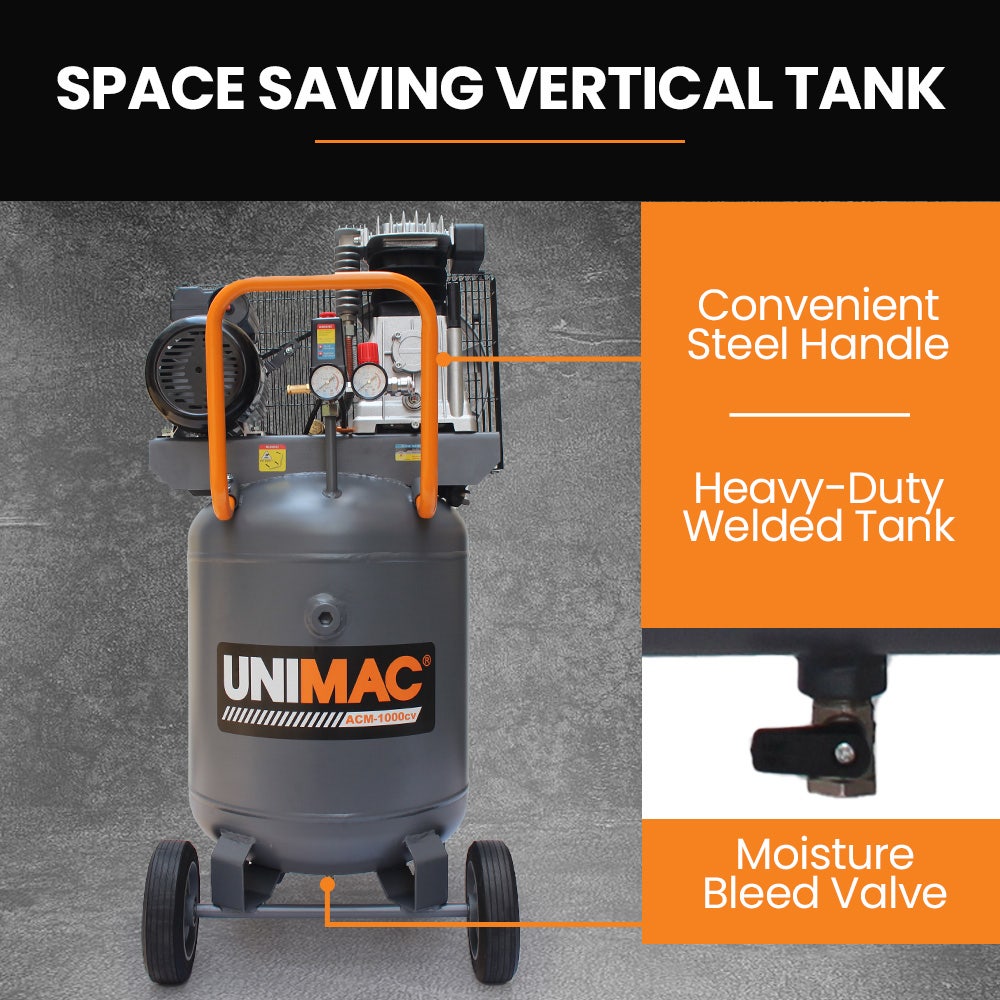

The vertical tank design saves space. It takes less floor space making it a smart solution in smaller shops and garages. The large 100L capacity steel tank ensures extended run times. The durable tank construction is built to withstand rigorous use, and the welded cast steel cylinder chamber has welded outlet and inlet ports and a welded moisture bleed port with an easy-to-use quarter-turn valve
SAFETY AND CONVENIENCE

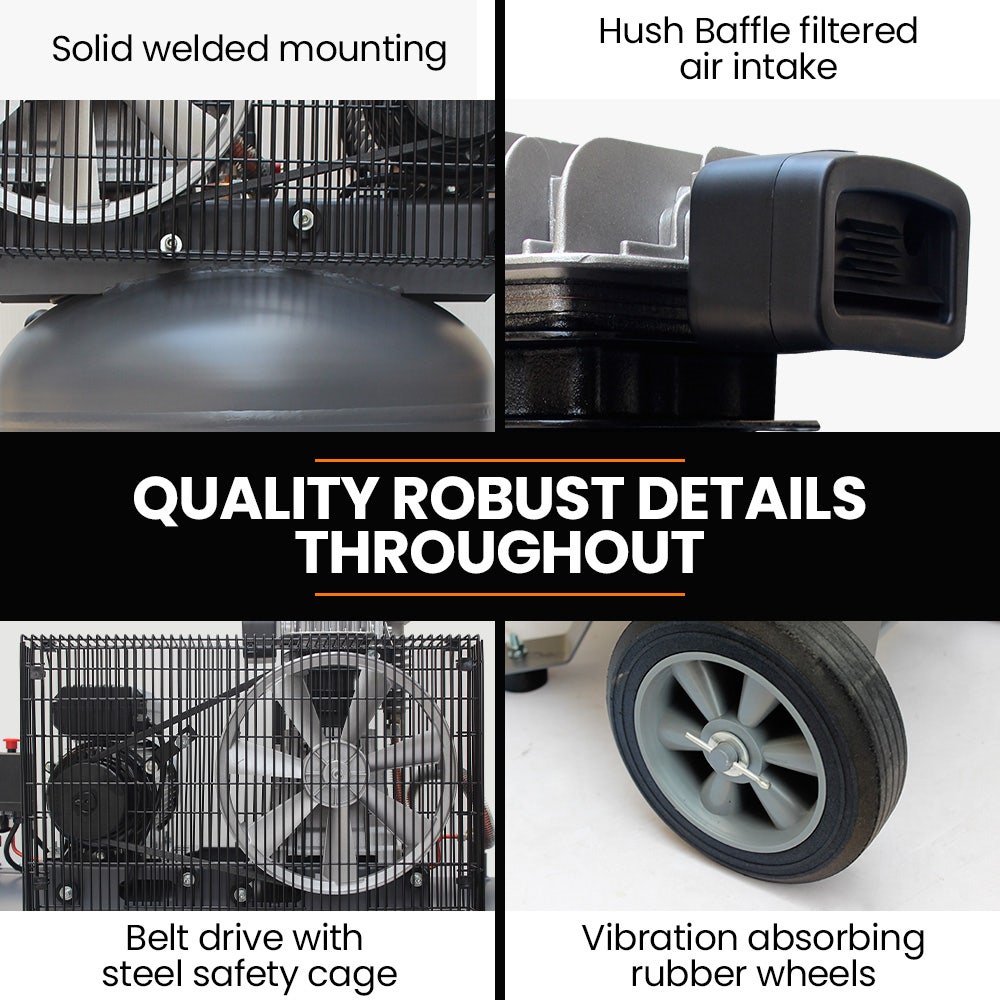

Convenience and safety are the hallmarks of the Unimac ACM-1000cv. Its portable design includes a removable handle and rubber tyres, making it easy to transport and manoeuvre around your workspace. Rubber feet absorb vibration and prevent hopping action. Operating at a quiet 69 dBa (Lpa), this compressor is ideal for indoor use producing less noise and a more comfortable working environment. It also features an emergency shut-down plunger switch and an electric motor control with an overload protection circuit breaker.
Invest in the Unimac ACM-1000c and experience superior power, unmatched reliability, and ultimate convenience.
Unimac – Powering Your Potential
- 3.5hp motor delivers exceptional power
- Durable cast iron cylinders and aluminium pistons

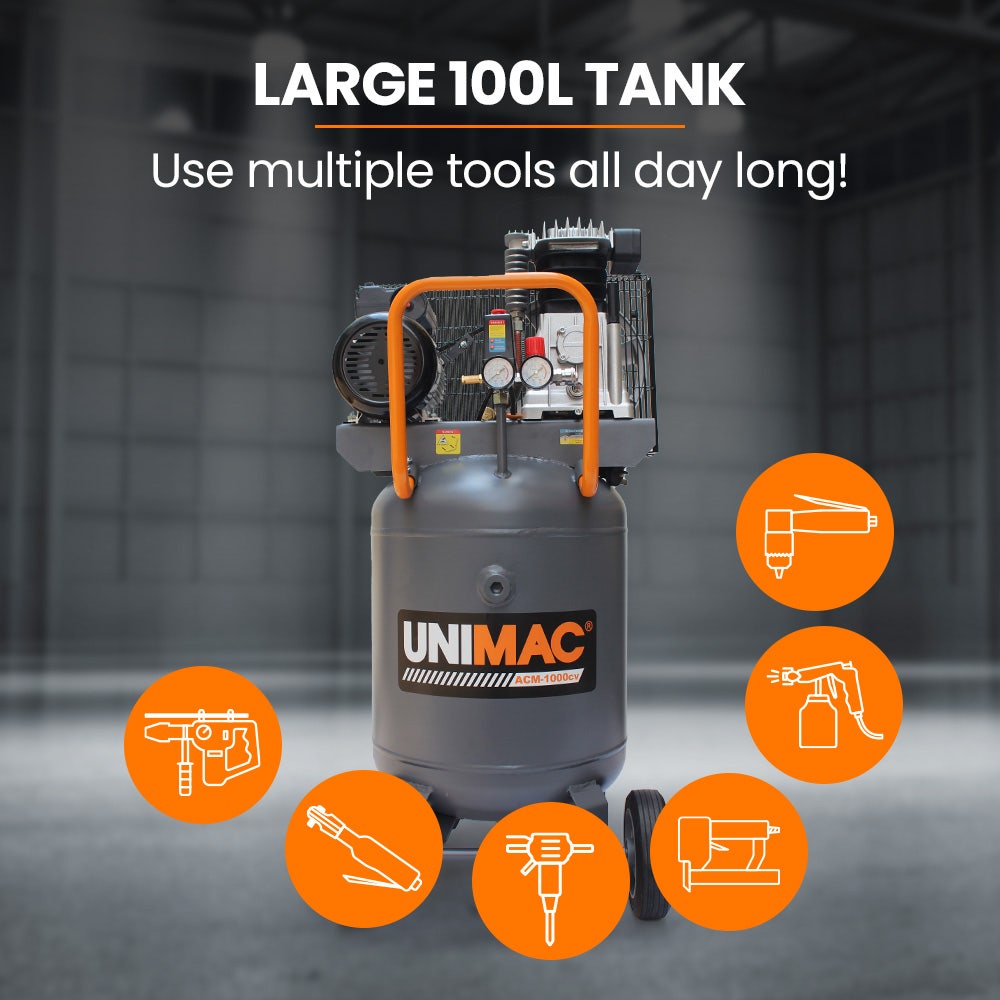

- Vertical 100L space-saving steel tank
- 116PSI working pressure

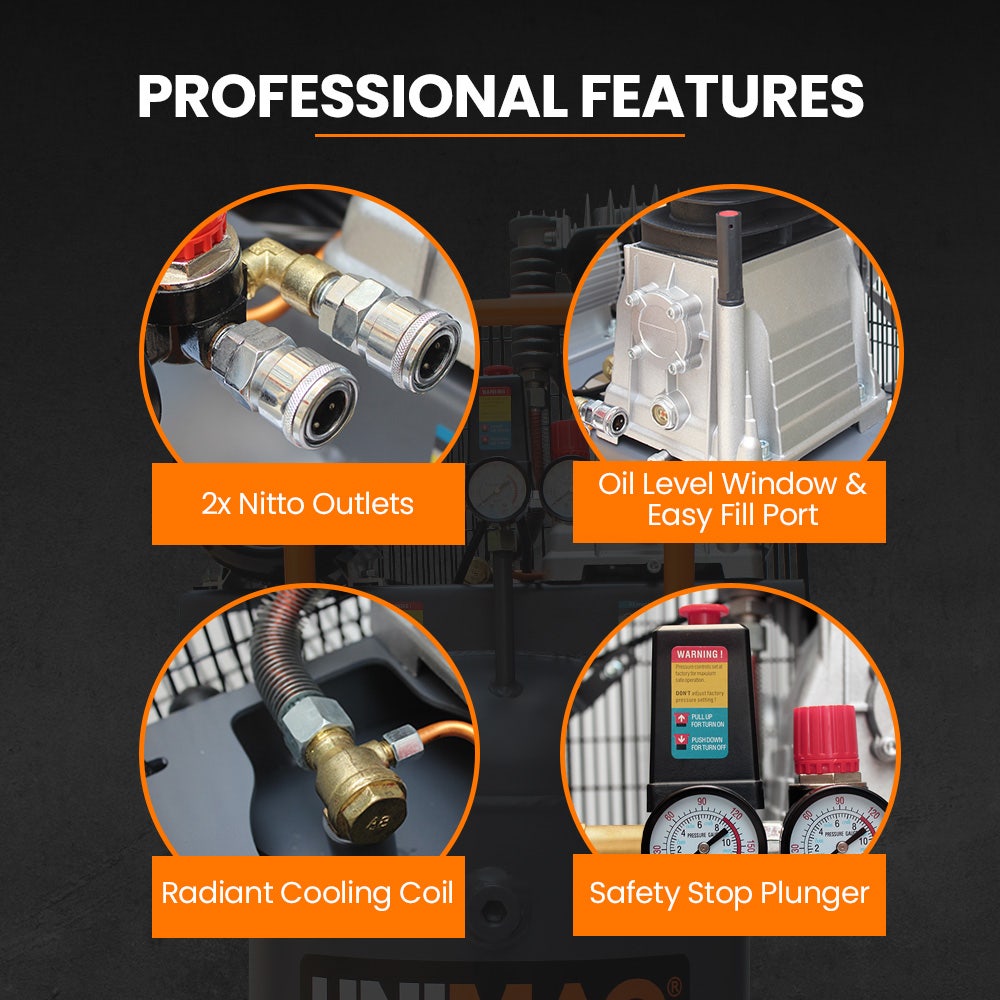

- 2 Nitto air outlets
- 370L/Min (13.0 CFM) air displacement
- 260L/Min free air delivery at 7bar (9.2 CFM) offers consistent performance
- Oil lubricated and belt-drive ensures longevity
- Rubber tyres and a removable handle for easy transport
- Separate tank and line gauges for accurate air pressure monitoring
- Operates at a quiet 69 dBa (Lpa)
- Aluminium after-cooler for optimal output air temperature
- 950 rpm pump and 0.75 duty cycle offer reliable performance
- Easy-to-use moisture bleed valve, large gauges, safety off button, and more
Specification
-
Brand: Unimac
-
Model: ACM-1000cv
-
Receiver Capacity: 100L
-
Input Voltage: 240V
-
Motor Input: 230~240V 50Hz
-
Air Displacement: 370L/Min (13.0 CFM)
-
Free Air Delivery: 260L/Min (9.2 CFM)
-
Working Pressure: 116PSI (8bar)
-
Restart Pressure: 86PSI (6bar)
-
IP Rating: IP20
-
Power Rating: 2.6kW
-
Power Plug: 15A
IN THE BOX
-
1 x Unimac ACM-1000cv Air Compressor
- Note: User Manual is accessible online
SIZE WEIGHT
-

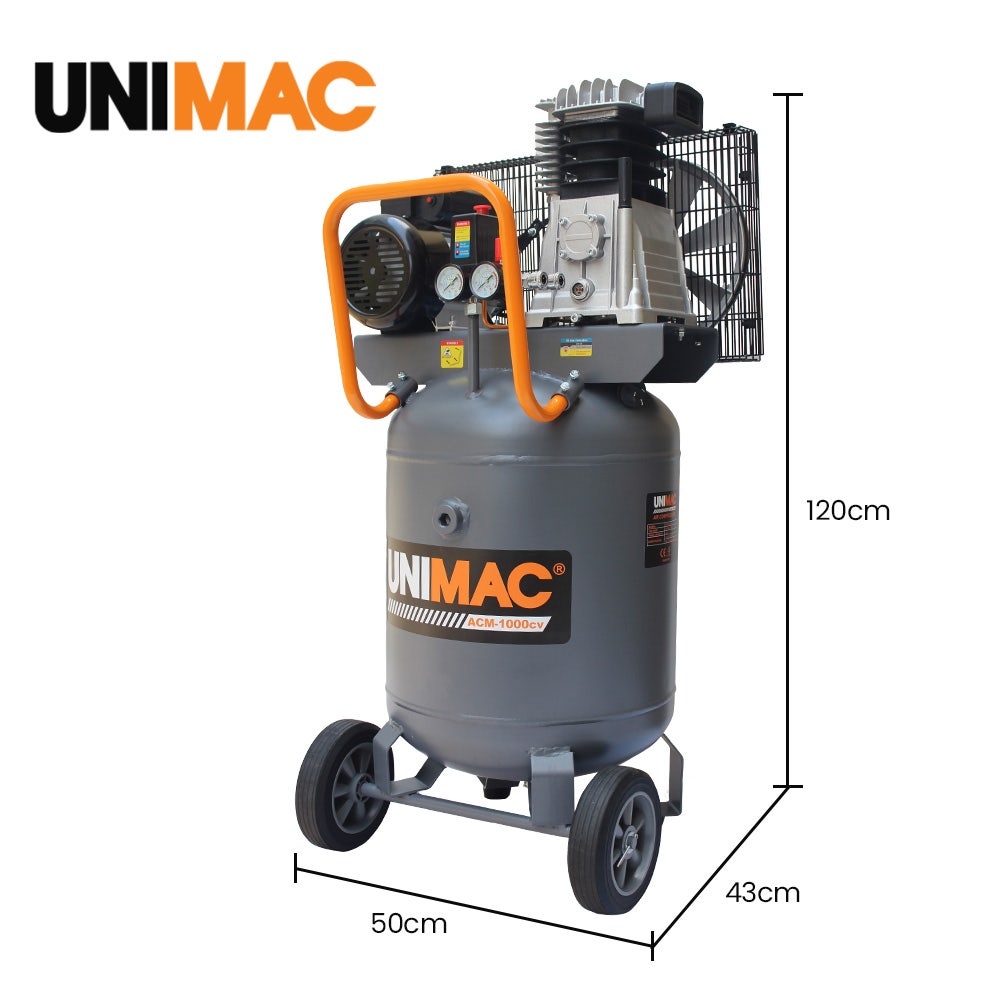

Product Dimensions (W x L x H): 50 x 43 x 120cm
-
Product Weight: 82kg
-
Carton Dimensions (W x L x H): 52 x 45 x 130 cm
-
Carton Weight: 96kg
SKU: TOLACMUM10VA
