The UL-tech Automatic Roll Up Door Opener is a powerful and reliable solution for automating your garage, barn, or warehouse roller doors. Featuring a robust 800N motor, this opener is designed to handle doors up to 25m? with smooth and quiet operation. It comes with two remote controls for convenient access from a distance, and its quiet, low-vibration motor ensures minimal disturbance. The system includes an automatic safety reverse system and a manual release cable for power outages, ensuring both security and peace of mind. With its "soft start/soft stop" function, the motor reduces stress on the door, prolonging its lifespan. The included mounting hardware and easy installation make this a great choice for both commercial and residential applications.
Features
Auto safety reverse system
Soft start and stop

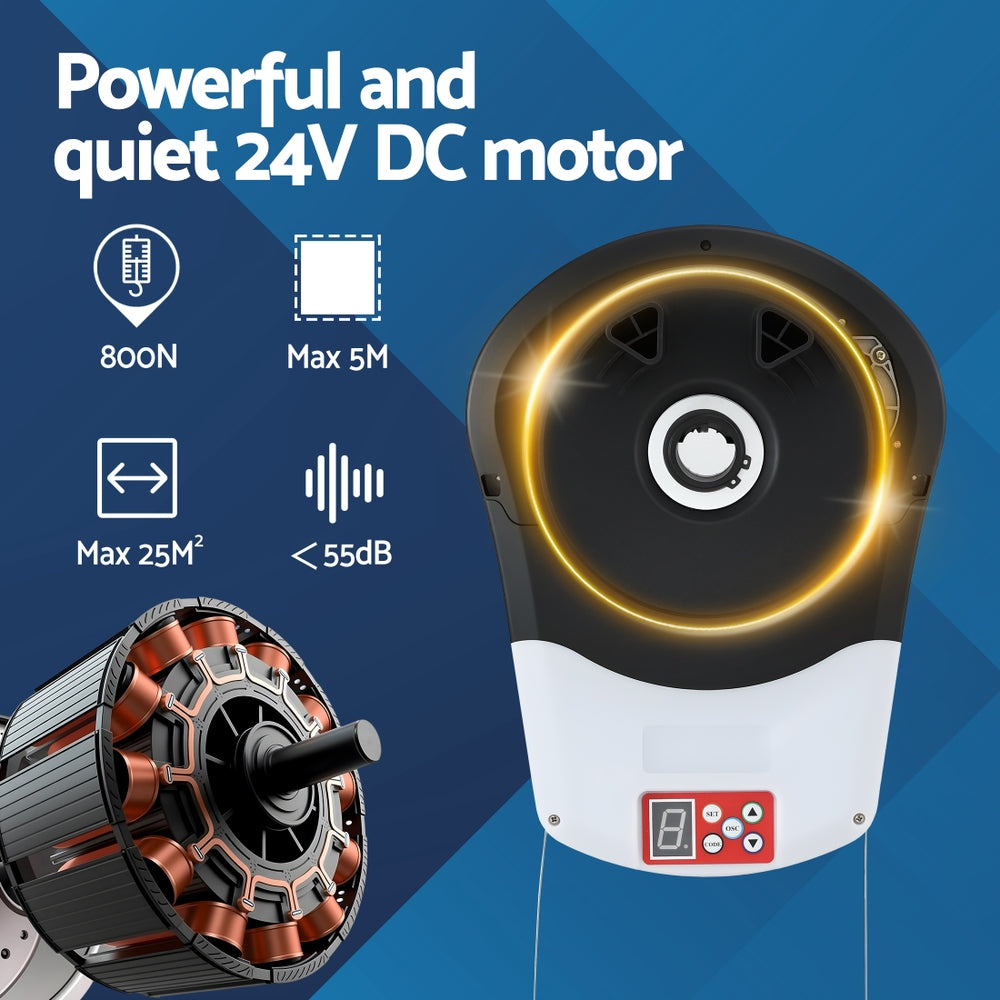

Powerful and quiet DC motor
Easy installation
Auto LED light delay
Rolling code security
Supports battery backup

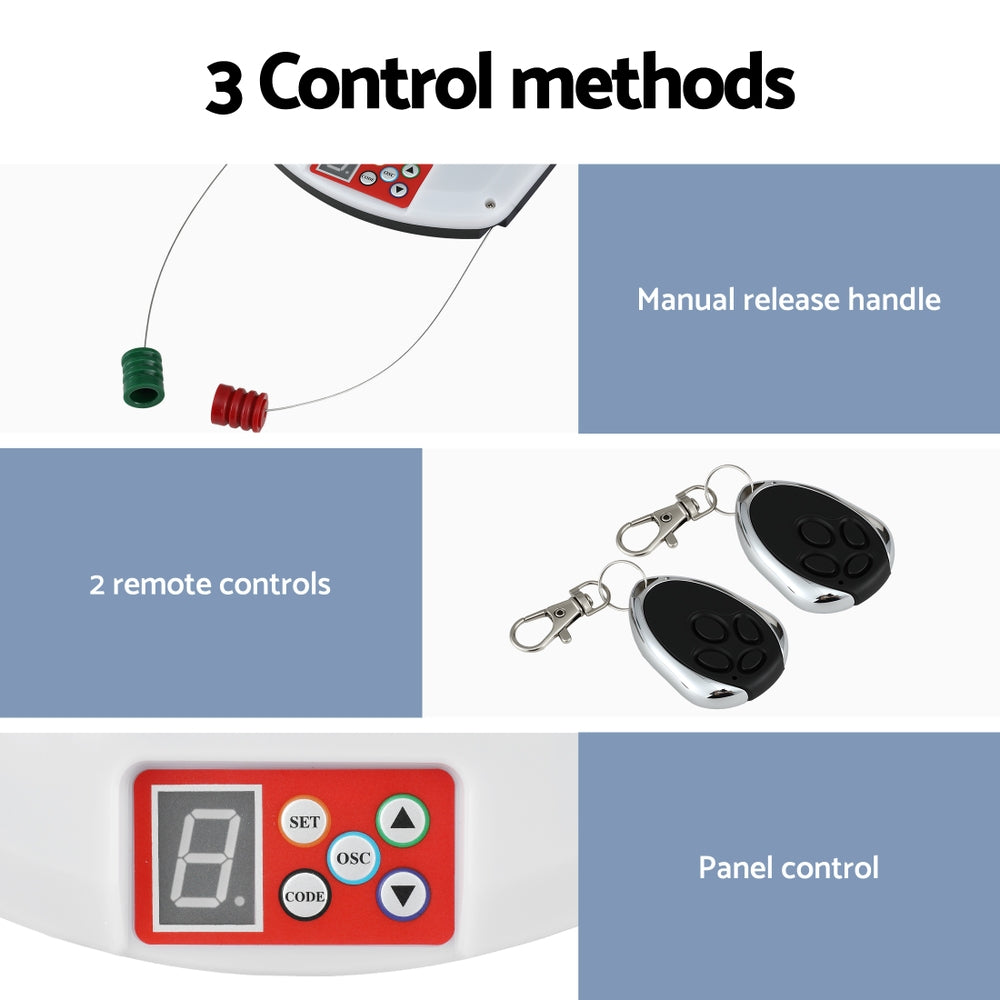

Manual release handle
Specifications:
Power input:220~240V AC 50Hz
Motor type:Permanent magnet DC Motor
Motor Power: 100W
Control Board Voltage: 24V DC
DC light voltage: 36V / 1.5W
Maximum Door Opening: 25 呢
Max. Lift Force: 800 N
Max lifting weight: 38kgs
Maximum Door Height: 5 m
Opening speed: 0.15-0.2m/s
Max Control Distance: 50 m
Remote battery: 27A 12V dry battery(not included)
Coding Type: Rolling Code
Transmitter Frequency: 433Mhz/315Mhz
Number of Code Combination: Over 4.29 Billion

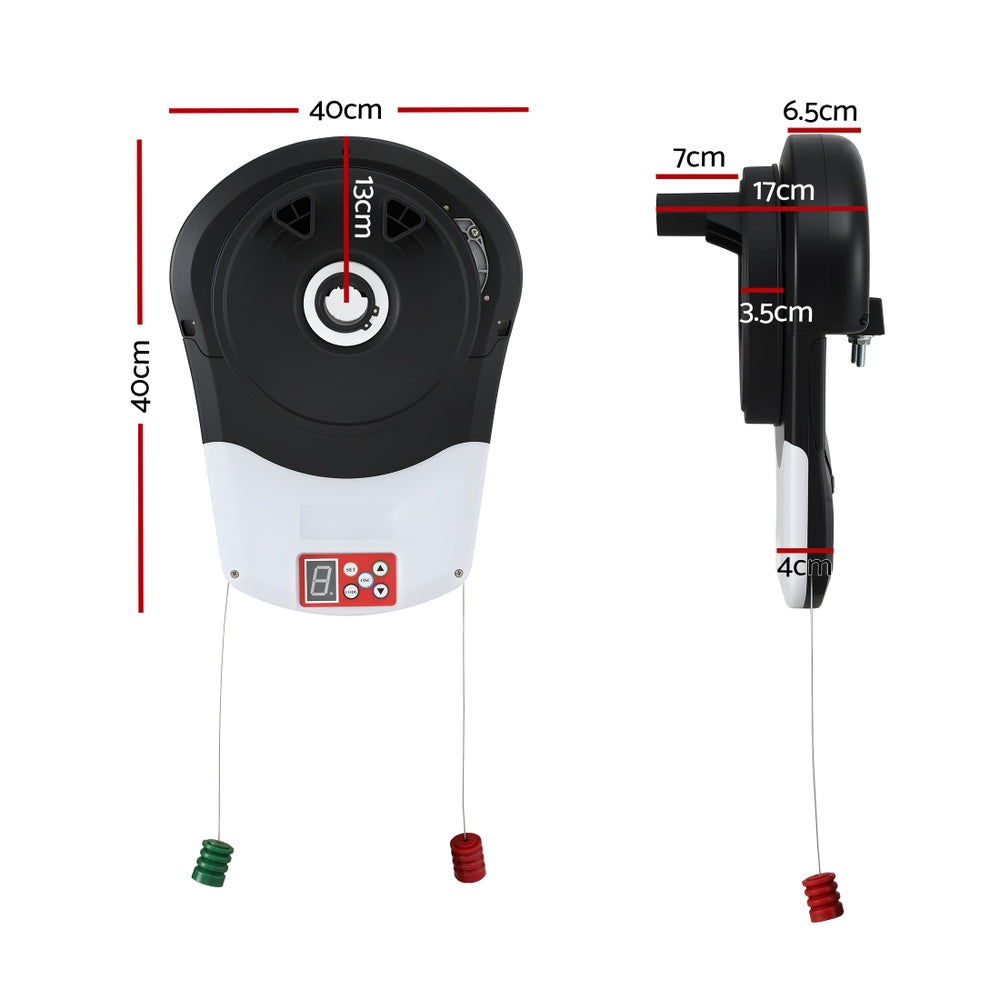

Overall dimension: 40cm x 40cm x 17cm
Assembly Required: No
No. of packages: One
Package Content

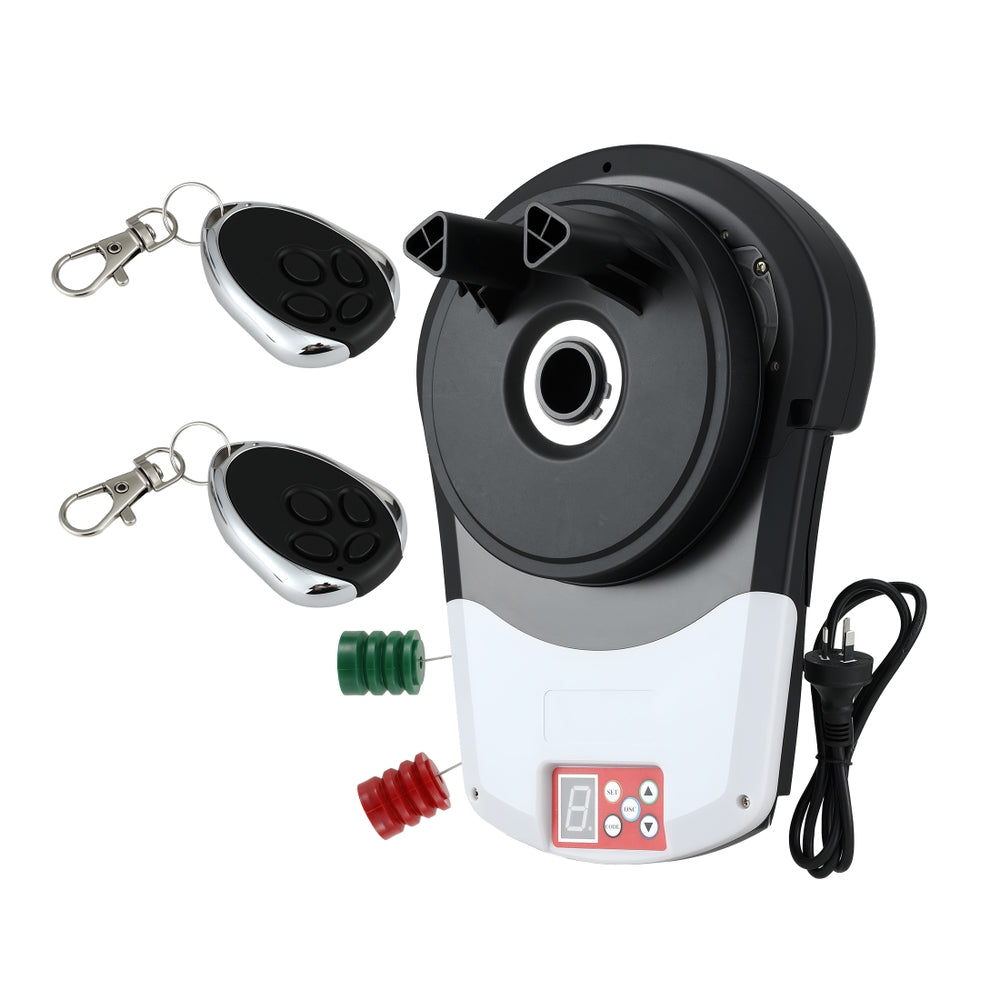

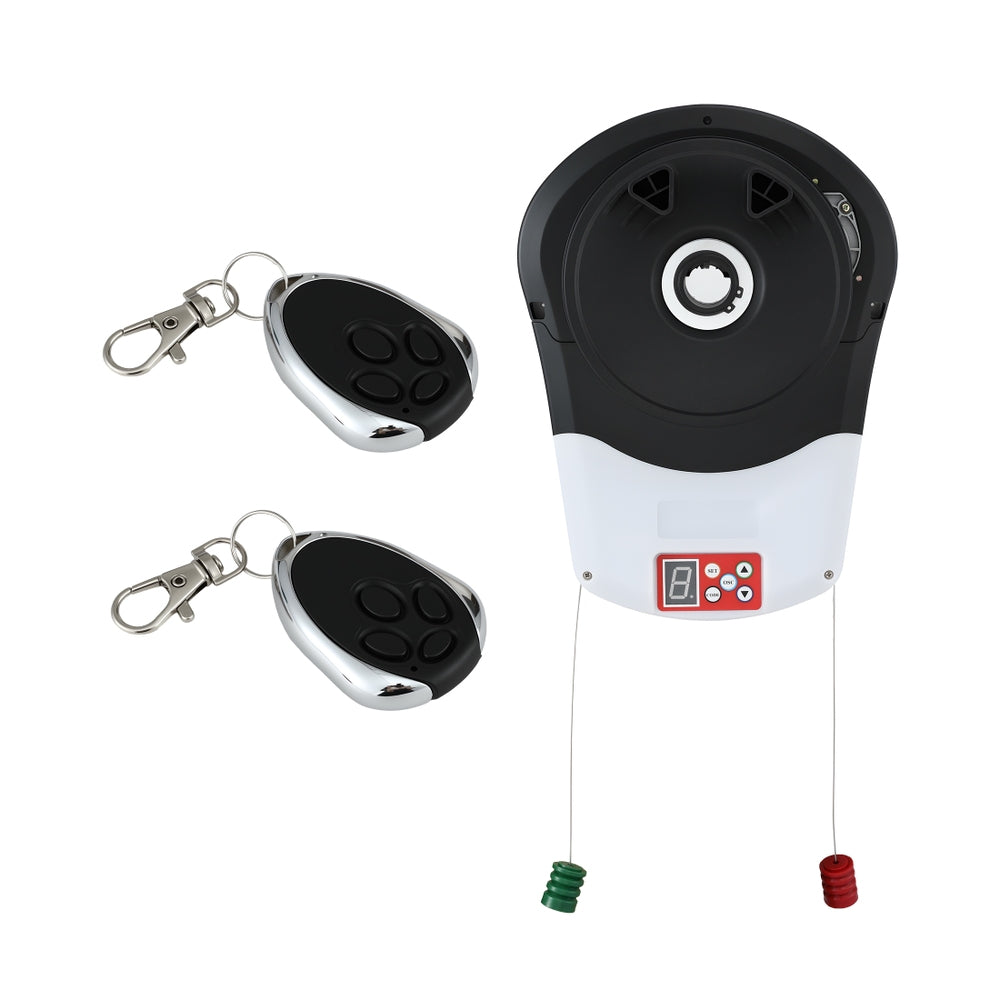

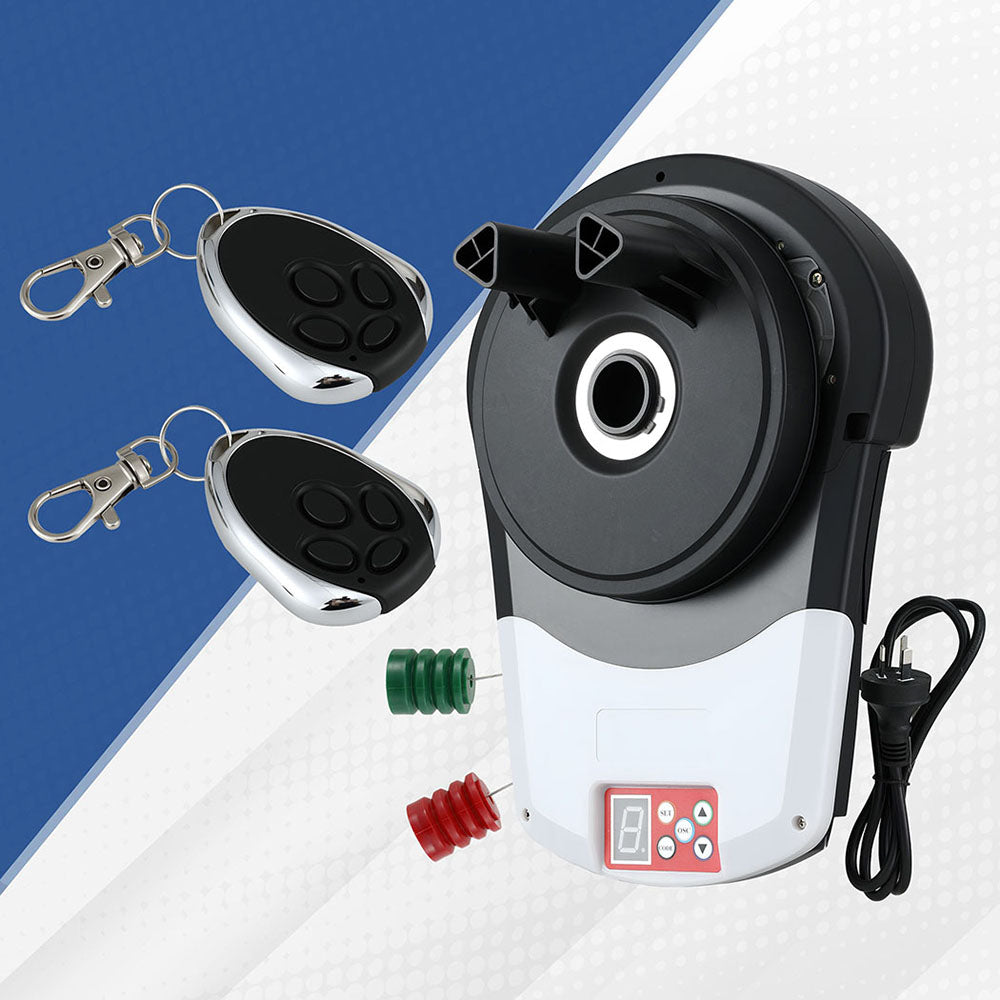

UL-tech Roller Garage Door Opener X1
Remote Control X2
User manual X1
This product comes with 1 year warranty
