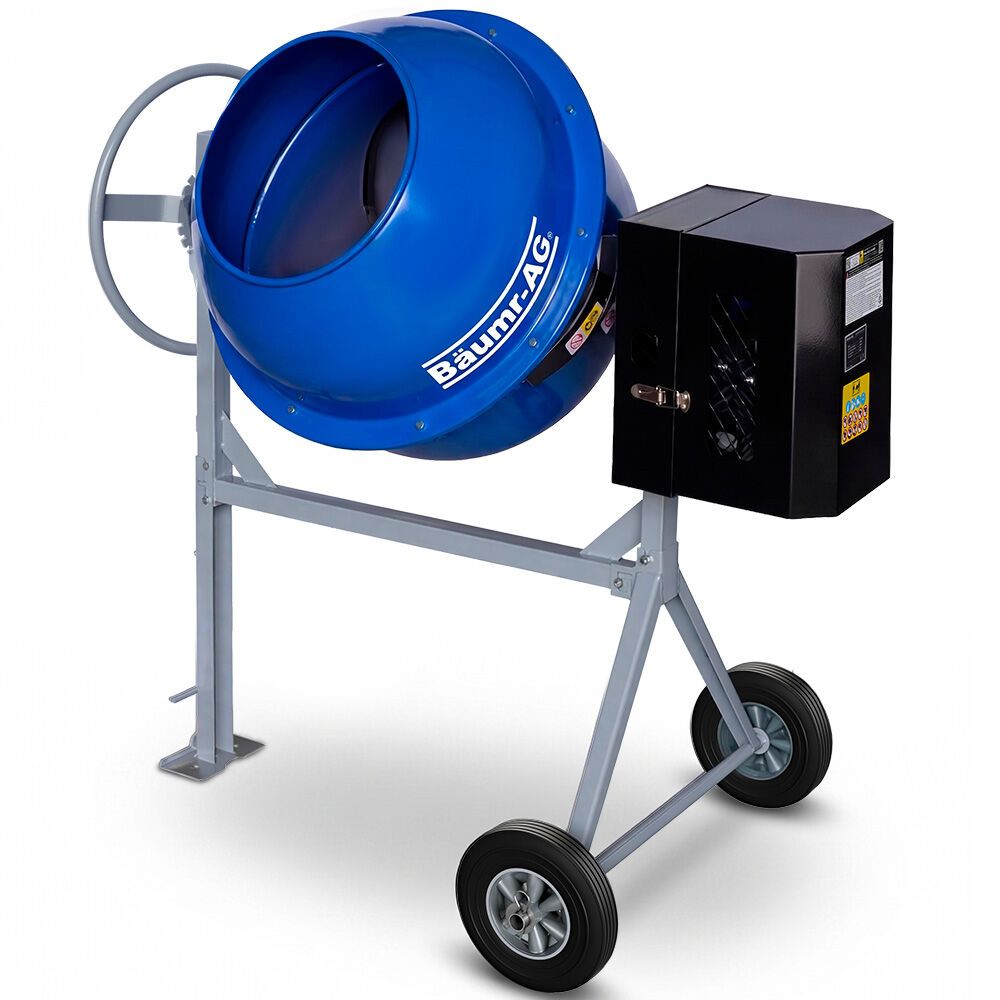

Baumr-AG 160L Petrol Concrete Mixer
BUILT TO MIX
The Baumr-AG CPS-160 is a 160L Petrol Concrete Mixer made for tradies, small operators, rural property owners and serious DIY users who need petrol powered mixing without relying on mains power. It is a practical choice for concrete, cement mortar, plaster, resin and asphalt jobs around worksites, sheds, farms and larger properties.
PETROL POWER

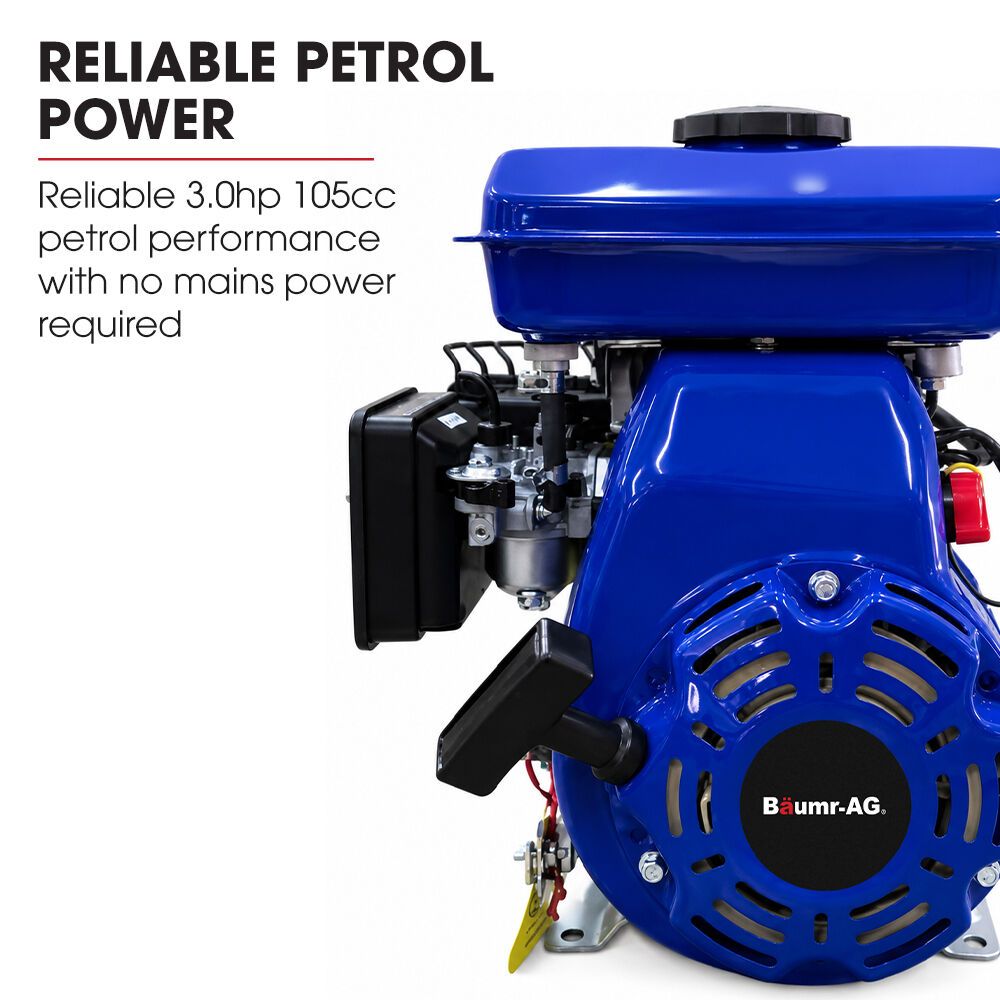

The 105cc 3.0HP 4-stroke single cylinder engine delivers around 2250W of power for regular mixing tasks. Recoil start, manual choke and manual throttle keep the setup simple, while forced air cooling with thermal cut-off helps protect the engine during demanding work.
TOUGH BUILD

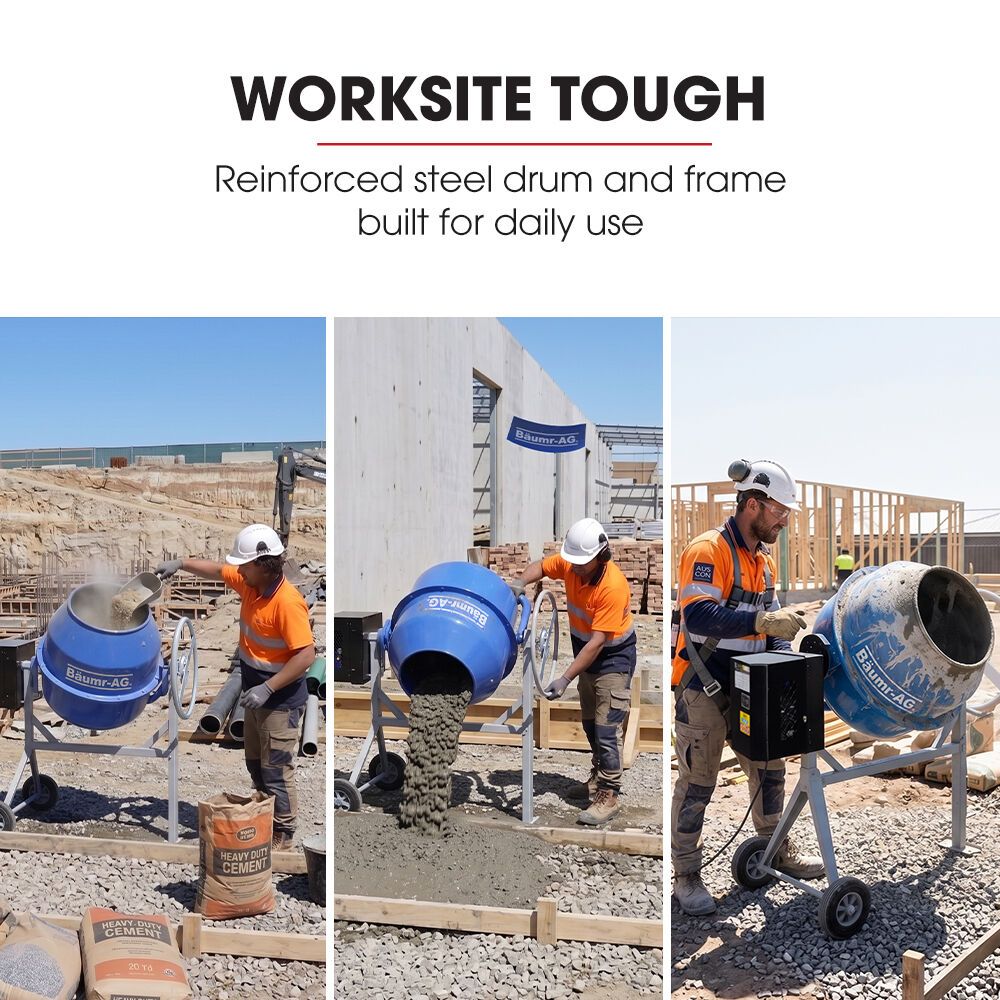

A heavy duty tubular steel frame supports up to 140kg, giving the CPS-160 the strength needed for smaller commercial style jobs and serious property maintenance. The steel drum has a 1.2mm upper section and 1.8mm lower section, helping it handle common mixing loads where the heavier material settles.
CONTROLLED POURING

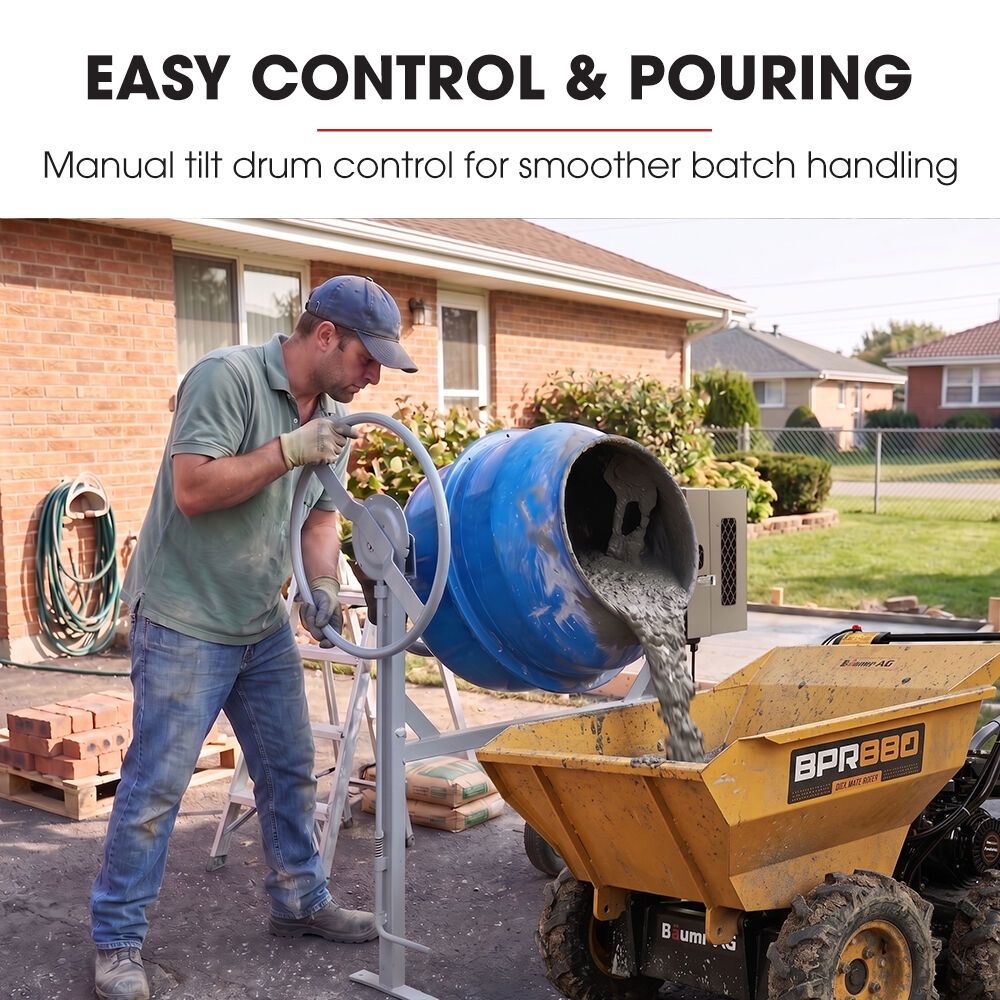

The GripLock foot-controlled tilt and lock system helps you manage drum position while keeping both hands free for controlled pouring. With geared manual tilt and a steel tip lock mechanism, it is designed to make loading, mixing and emptying more manageable under load.
WORK READY
The 390mm drum mouth and 630mm drum diameter make loading materials straightforward, while two steel agitator blades help produce consistent mixes. Cast iron drive and drum gears, a dry centrifugal clutch and gear drive transmission support reliable power transfer to the drum.
SMART VALUE
With 10 inch rubber wheels, a steel axle, 1.2L fuel tank and 24-45 RPM drum speed, the CPS-160 is a handy mixer for buyers who want practical petrol powered performance in a more compact size. It gives you Baumr-AG strength, value and ease of use for demanding Australian conditions.
- 160L drum capacity supports larger mixing jobs
- 105cc 3.0HP 4-stroke petrol engine suits work away from mains power
- Forced air cooling with thermal cut-off helps protect the engine
- Recoil start keeps operation simple and jobsite friendly
- Manual choke gives added control during cold starts
- Manual throttle lets you manage engine speed
- Fine paper air filter helps protect the engine from dust intake
- Dry centrifugal clutch provides reliable power transfer to the drum

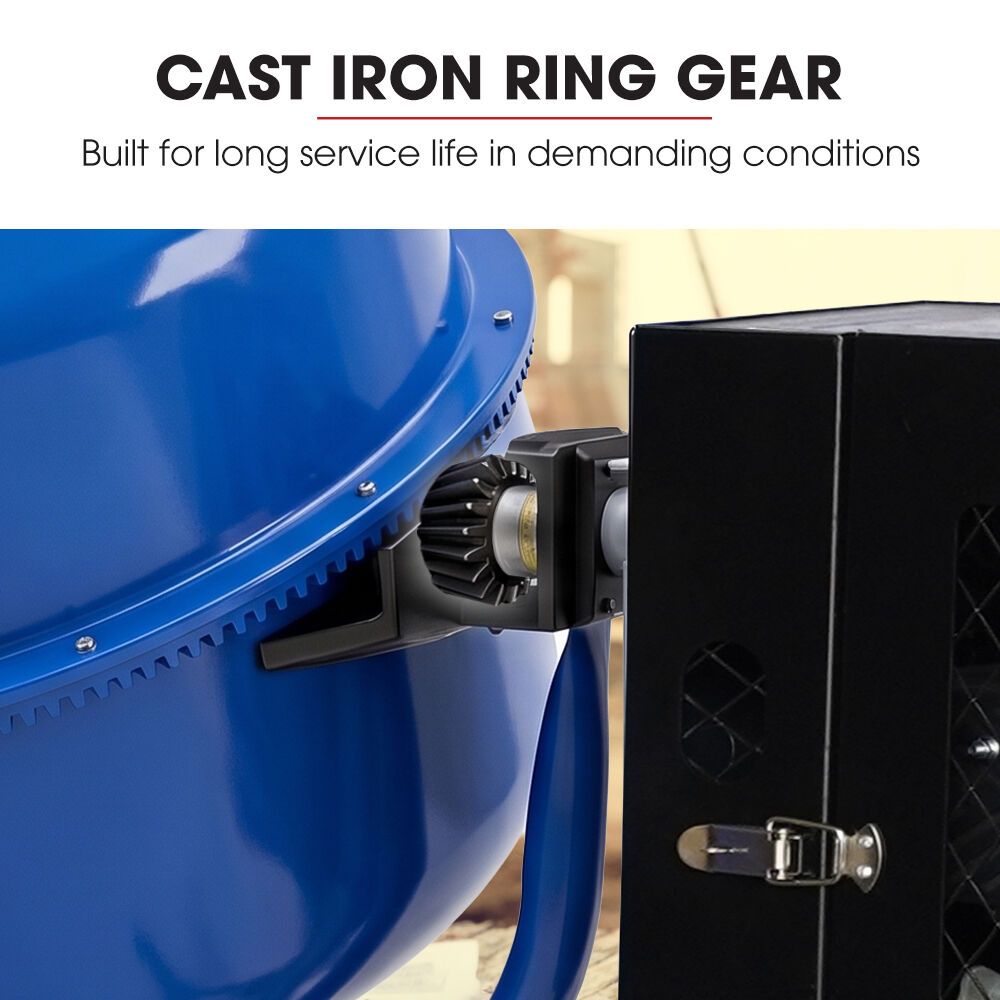

- Cast iron drive and drum gears improve long term durability
- 24-45 RPM drum speed supports controlled mixing
- Two steel agitator blades help produce consistent mixes
- Heavy duty tubular steel frame supports up to 140kg for heavier mixing tasks

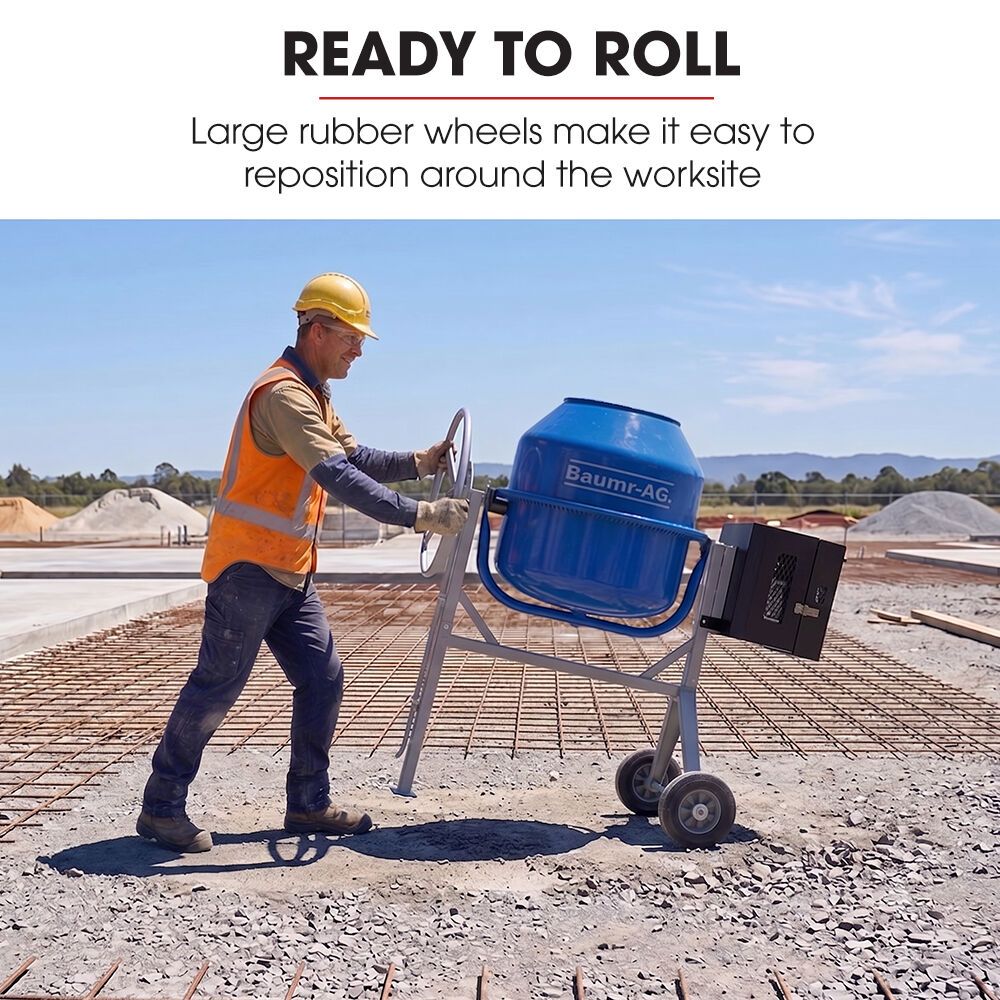

- 10 inch rubber wheels mounted on a steel axle improve worksite mobility
- 1.2mm upper and 1.8mm lower steel drum construction suits cement, mortar and concrete mixing

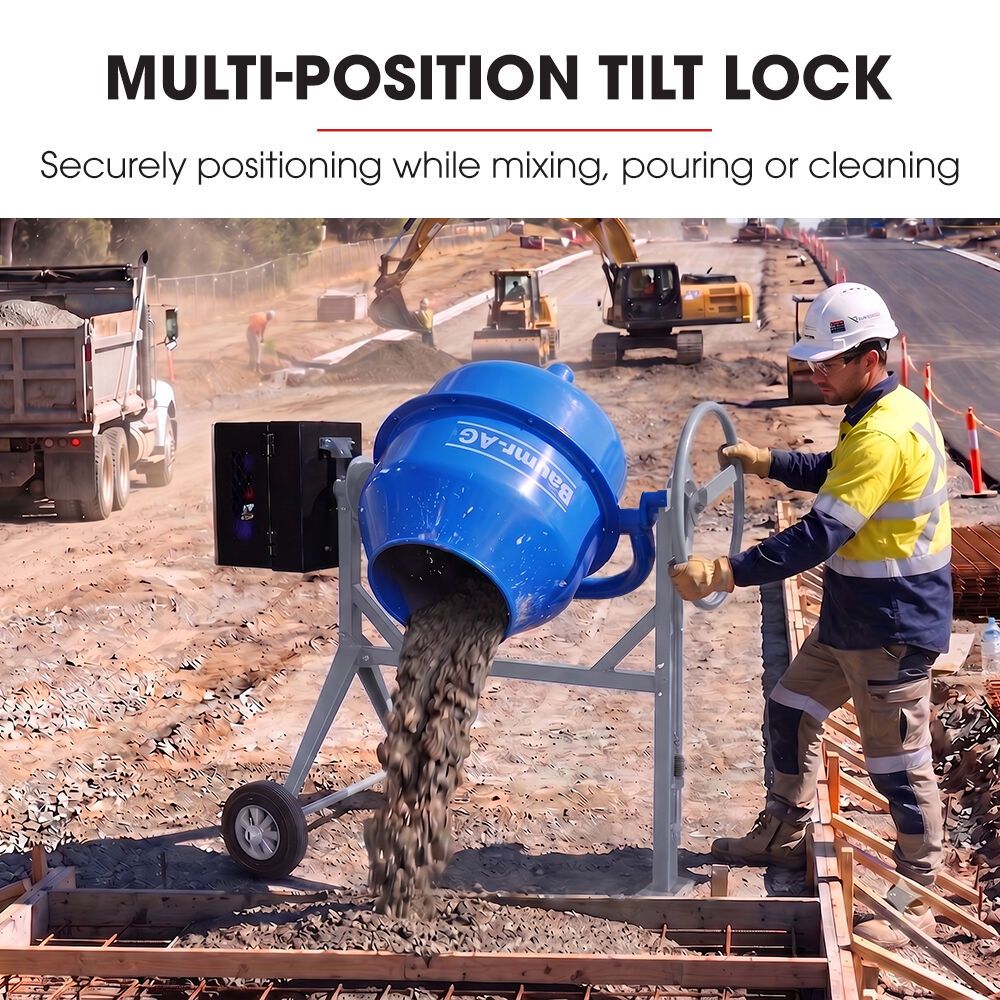

- Foot controlled steel tip lock mechanism keeps both hands free for controlled pouring
- 390mm drum mouth and 630mm drum diameter make loading and mixing easier
SPECIFICATIONS
-
Product Type: Concrete Mixer
-
Brand: Baumr-AG
-
Colour: Blue
-
Body Material: Steel - Heavy Duty
-
Motor Type: 4-Stroke
-
Engine Displacement: 105cc
-
Power Type: Petrol Engine
-
Power (Watts): 2250W
-
Drum Capacity: 160L
-
Drum Diameter: 630mm
-
Drum Mouth: 390mm
-
Drum Speed: 45 RPM
-
Ring Gear Type: Cast Iron
IN THE BOX
-
1 x Baumr-AG 160L Petrol Concrete Mixer
- Note: User Manual is accessible online
SIZE WEIGHT
-

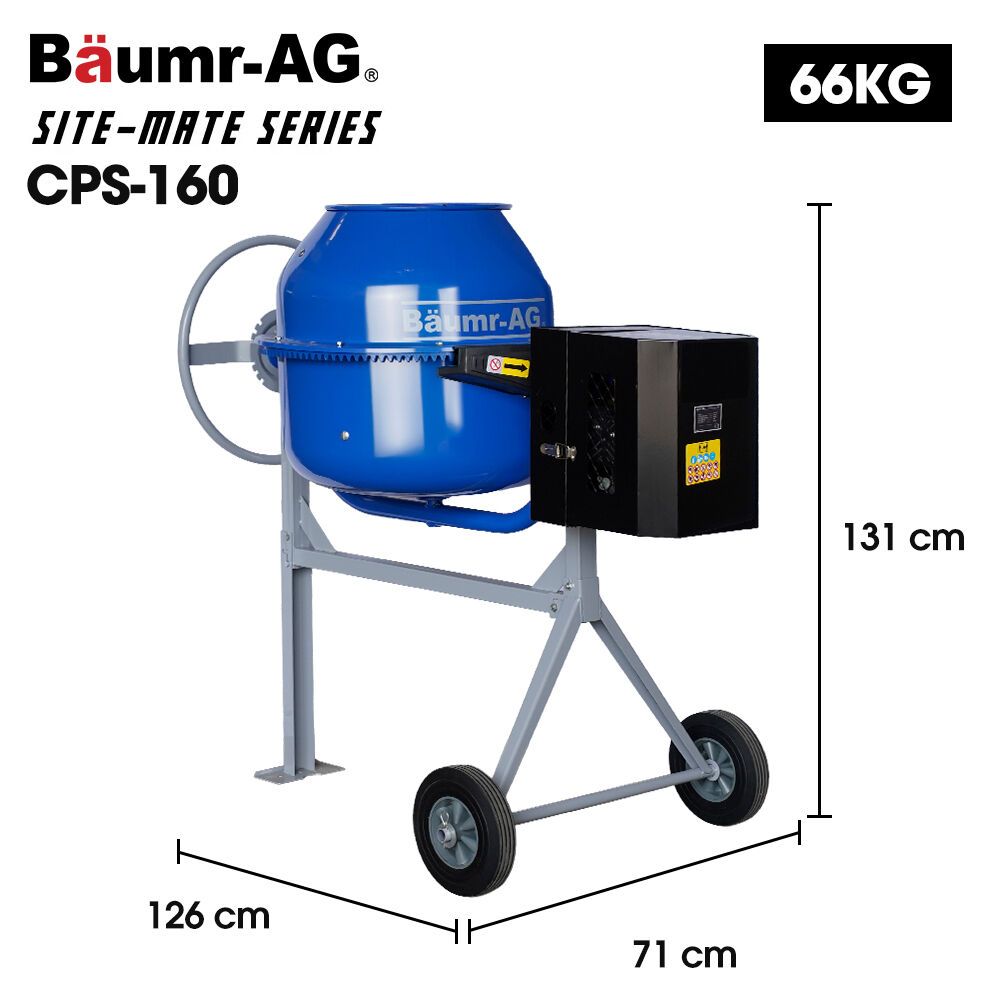

Product Dimensions (W x L x H): 126 x 71 x 131 cm
-
Product Weight: 66kg
-
Carton Dimensions (W x L x H): 76 x 80 x 65 cm
-
Carton Weight: 83kg
