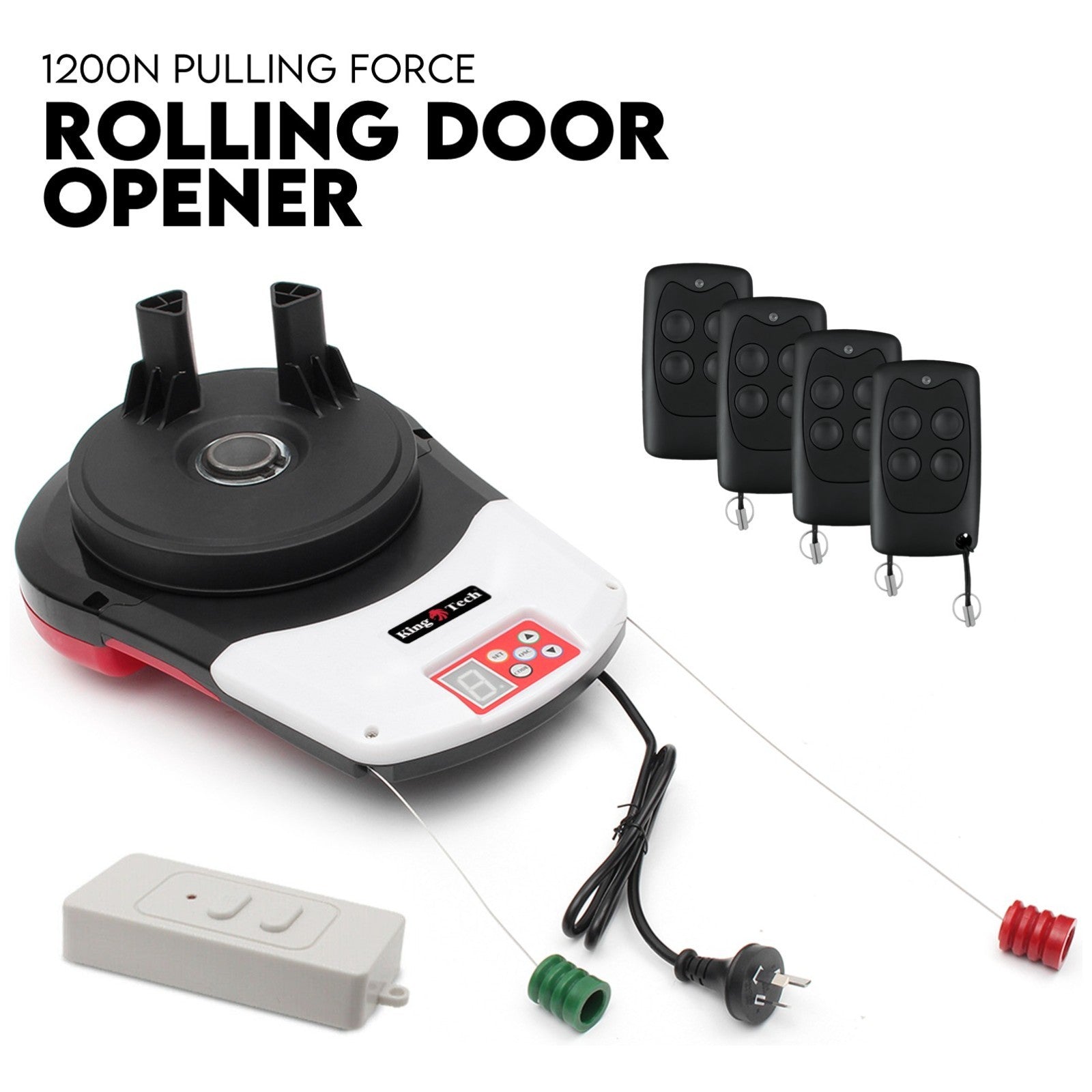

Built for Aussie garages that demand quiet, reliable muscle, the KingTech 1200N Garage Door Roller Auto Opener Motor delivers serious grunt without the racket. With soft start / soft stop motion, it glides your door open smooth as silk, while the whisper-quiet motor keeps the peace at home. Designed to fit left or right-hand setups, it powers doors up to 22 m² or 120 kg with ease. The automatic safety reverse system adds peace of mind, and the LED courtesy light kicks in when you need it most. Straightforward to install and backed by KingTech engineering, this unit means business.
Key Features
-
1200 N lifting force handles heavy roller doors up to 22 m².
-
Whisper-quiet drive for early mornings and late nights.
-
Soft start / soft stop protects motor and door hardware.
-

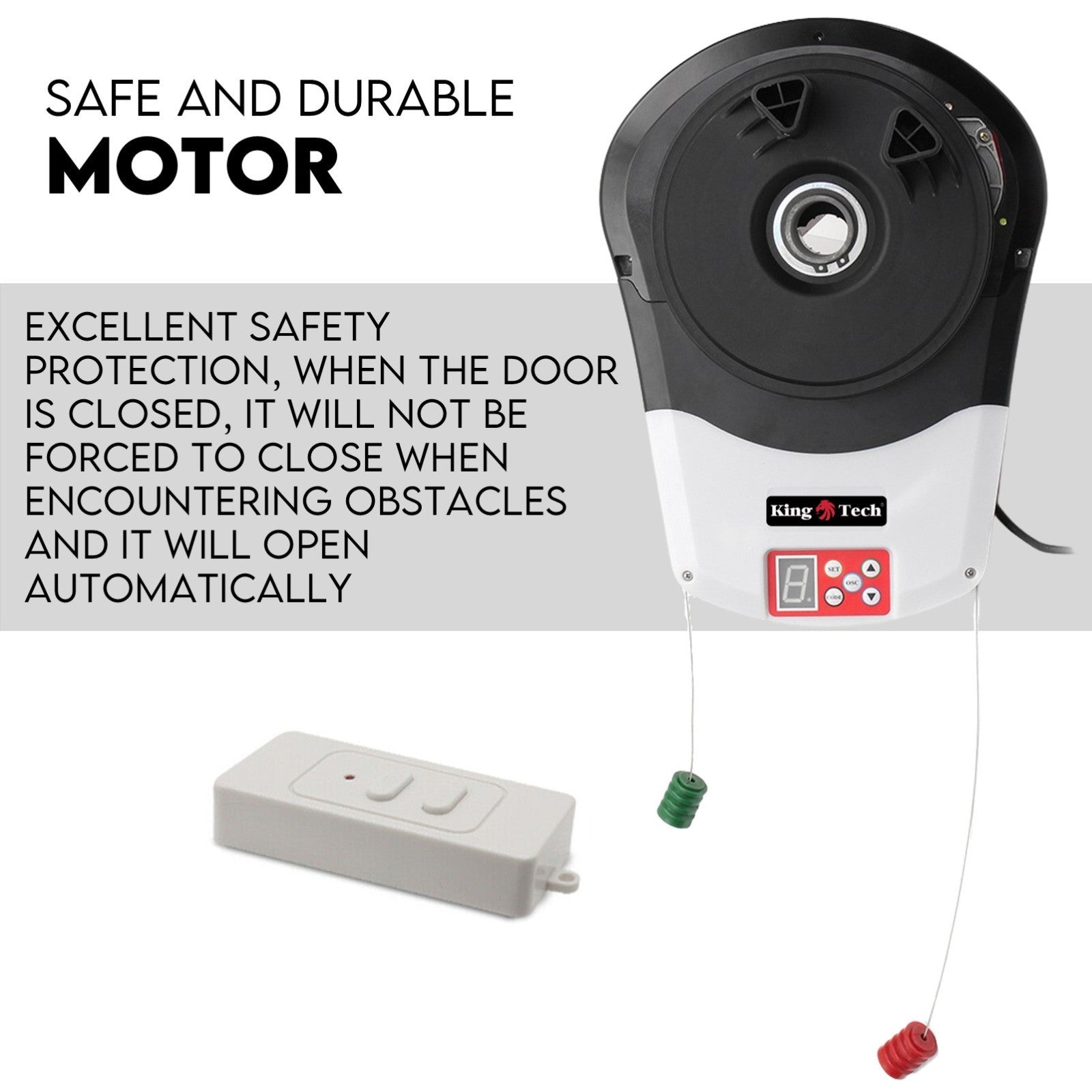

Automatic safety reverse stops and retracts on obstruction.
-
LED courtesy light illuminates entry for added safety.
-

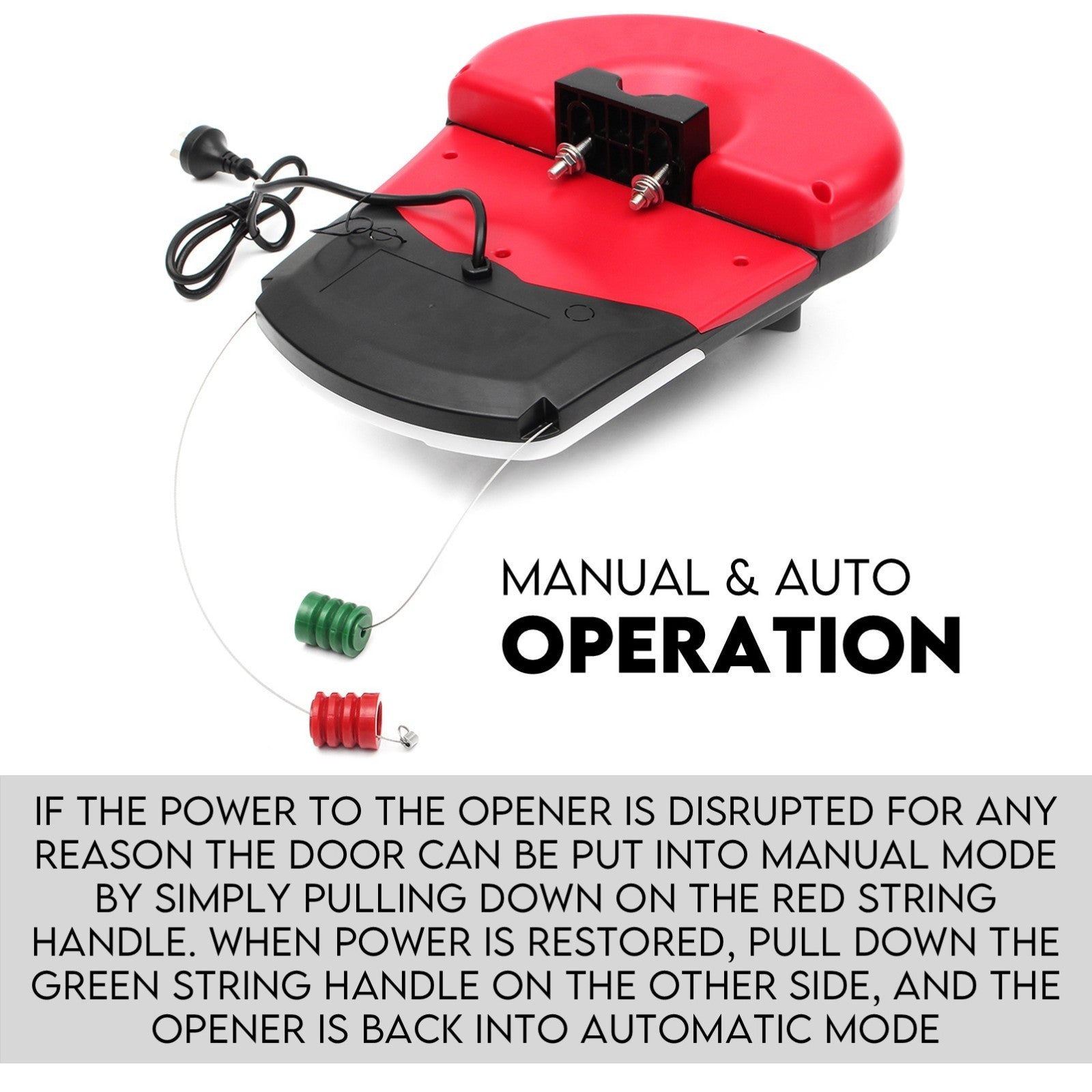

Manual release handle allows operation during power loss.
-
Left or right side mounting for flexible installation.
-
Electronic power stabiliser keeps performance consistent.
-

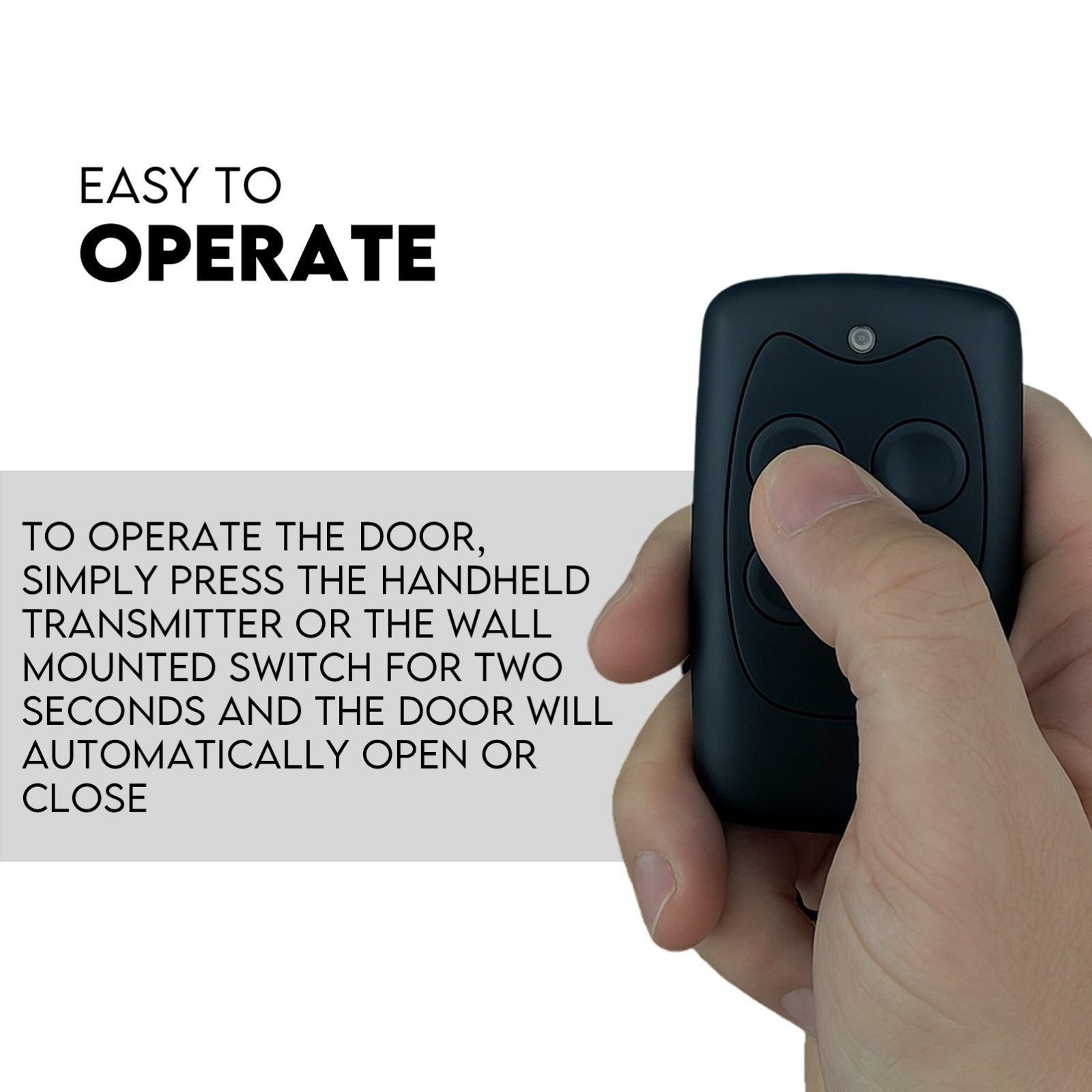

Four remote controls plus wireless wall button included.
-
Long-range 50 m remote reach for convenient access.
-
Durable 24 V DC motor runs cool and lasts longer.
-
Low-vibration design — permanently lubricated and built tough.
Specifications
| Maximum Lifting Force |
1200 N |
| Input Power |
240 V AC, 50–60 Hz |
| Motor Voltage / Type |
24 V DC |
| Maximum Door Area |
Up to 22 m² |
| Maximum Door Height |
Up to 6 m |
| Maximum Door Weight |
120 kg |
| Control Range |
Up to 50 m |
| Unit Weight |
6 kg |
| Mounting Position |
Left or right side |
| Included Accessories |
4 × remotes, 1 × wireless wall button, 1 × user manual |
| Power Supply for Remotes |
A27 12 V battery |
| Notes |
Weight balancing bars not included |
This Roller Door Opener is Perfect for you if:

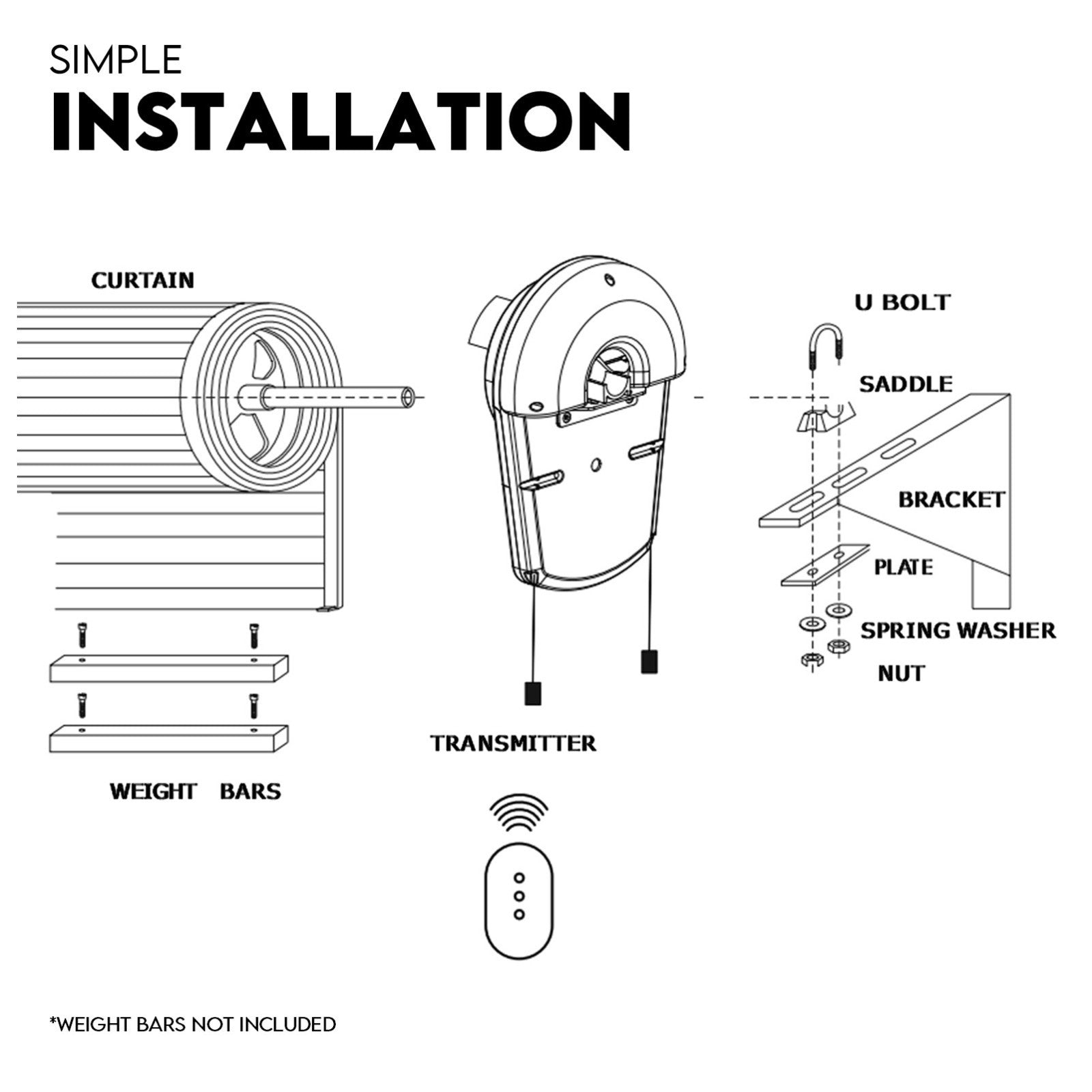

Your garage setup meets the following minimum clearances:
- The distance between the edge of the door curtain and the inside of the bracket should be at least 85mm.
- The distance between the edge of the door curtain and the outside of the bracket should be at least 135mm.
You want an optimal installation, the recommended side clearances are:
- The distance between the edge of the door curtain and the inside of the bracket should be more than 110mm.
- The distance between the edge of the door curtain and the outside of the bracket should be more than 160mm.
For returns due to change of mind, a 20% restocking fee will be applied.
